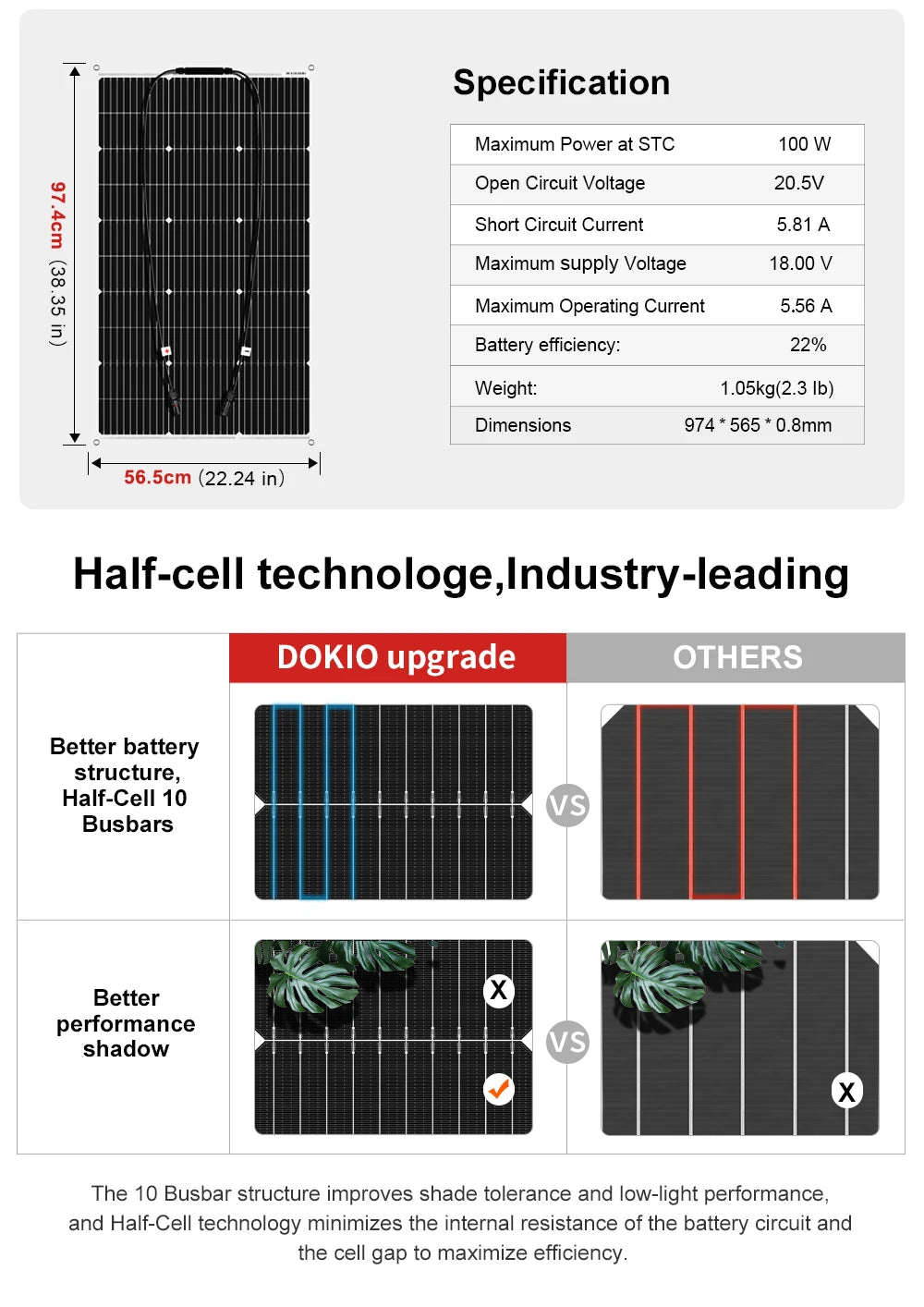

Model:DFSP-100M

Material:Monocrystalline Silicon

Maximum Power(Pmax): 100W

Maximum Power Voltage(Vmp):18.00V

Maximum Power Current (Imp):5.56A

Open-Circuit Voltage (Voc): 20.5V

Short-Circuit Current (Isc):6.5A

Maximum System Voltage: DC1000V

Maximum Series Fuse:15A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

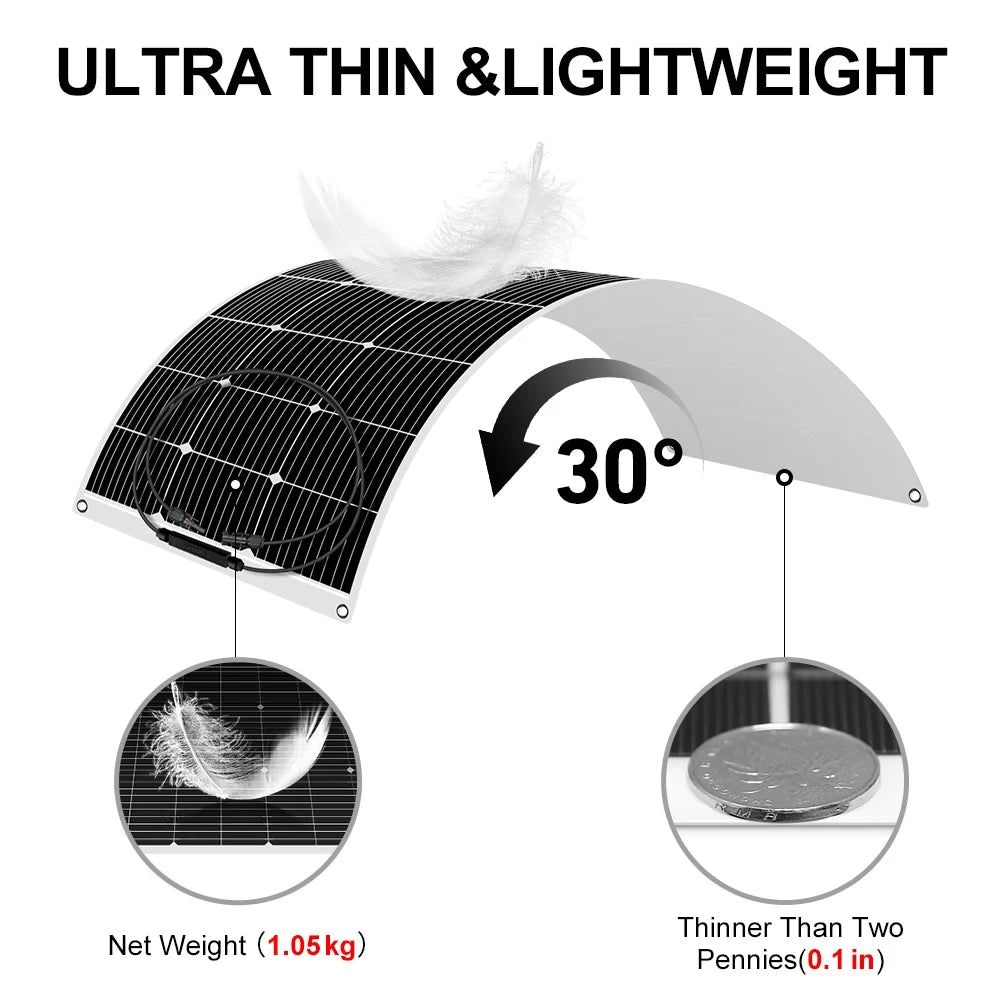

Net Weight:1.02kg

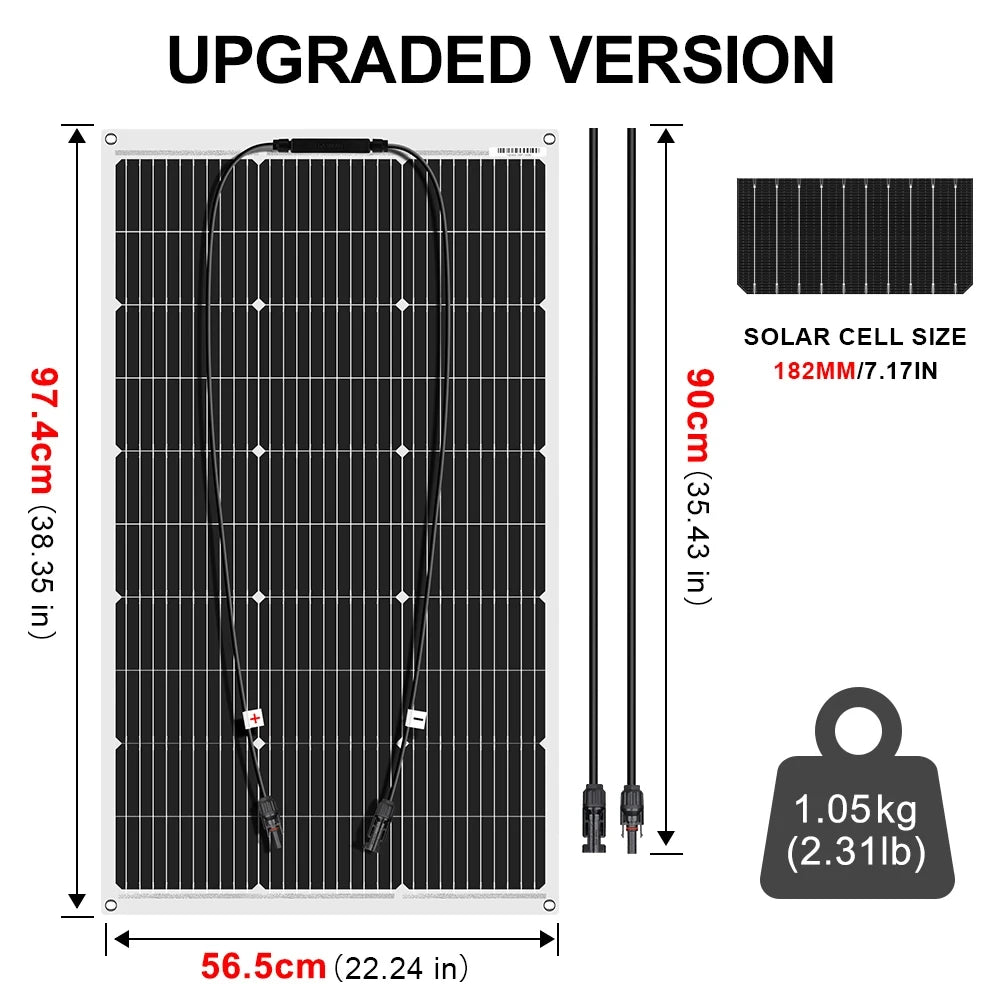

Dimension:974*565mm

Package Dimension:980*580*35mm

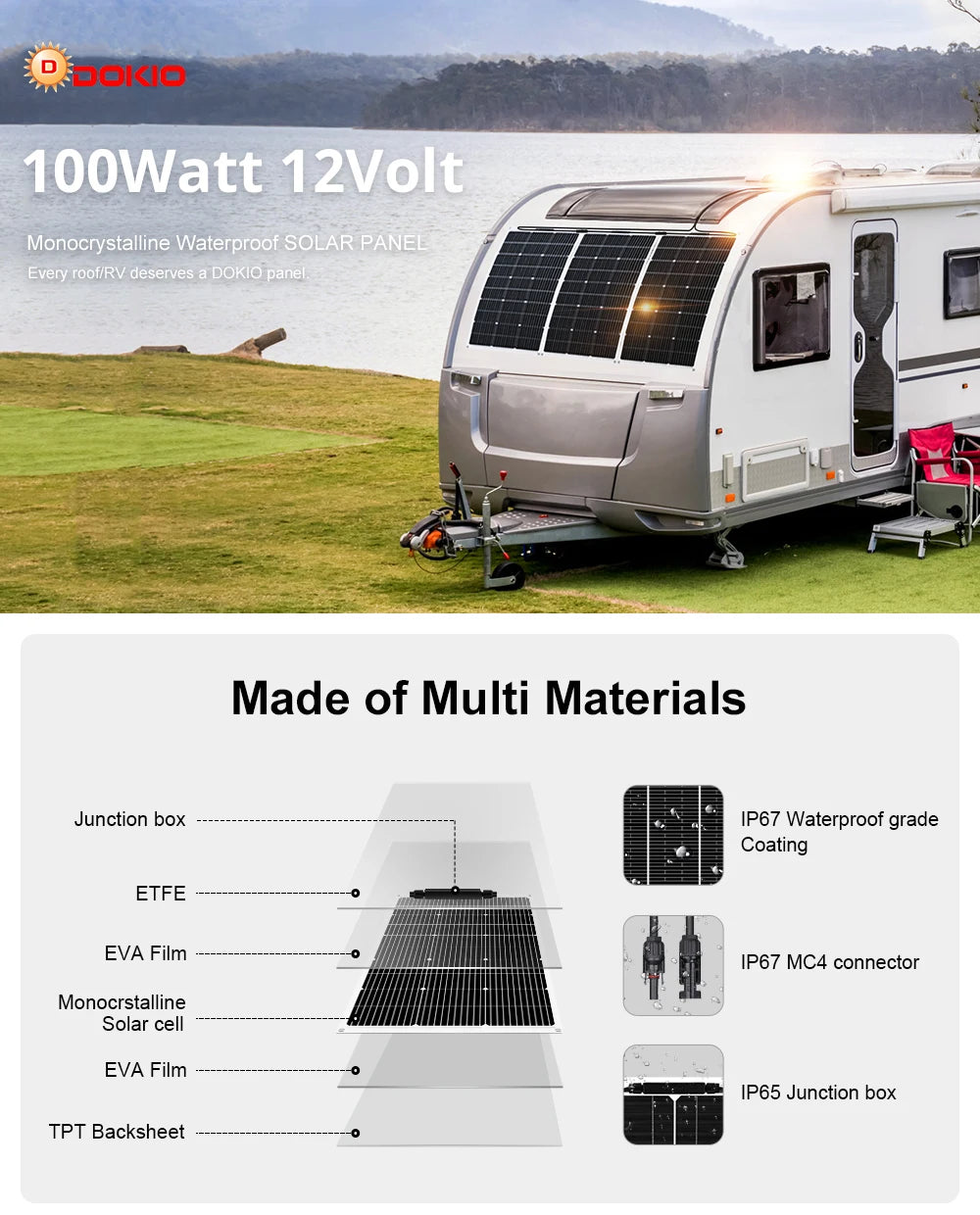

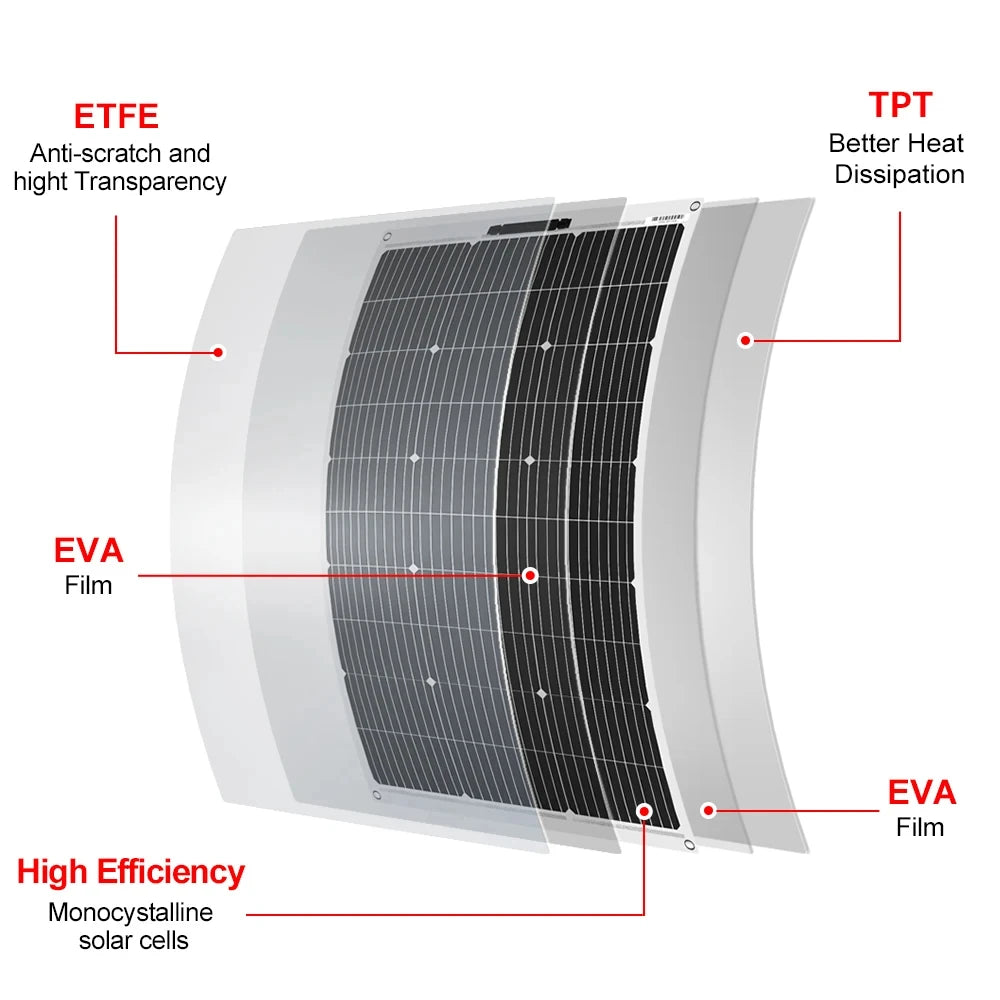

Material structure：

1 floor: ETFE

2 floor: EVA Film

3 floor: High Efficiency Solar Cell

4 floor: EVA Film

5 floor: TPT Backsheet

waterproof level：IP67（Junction Box）

(The above data is based on the laboratory standard test environment)

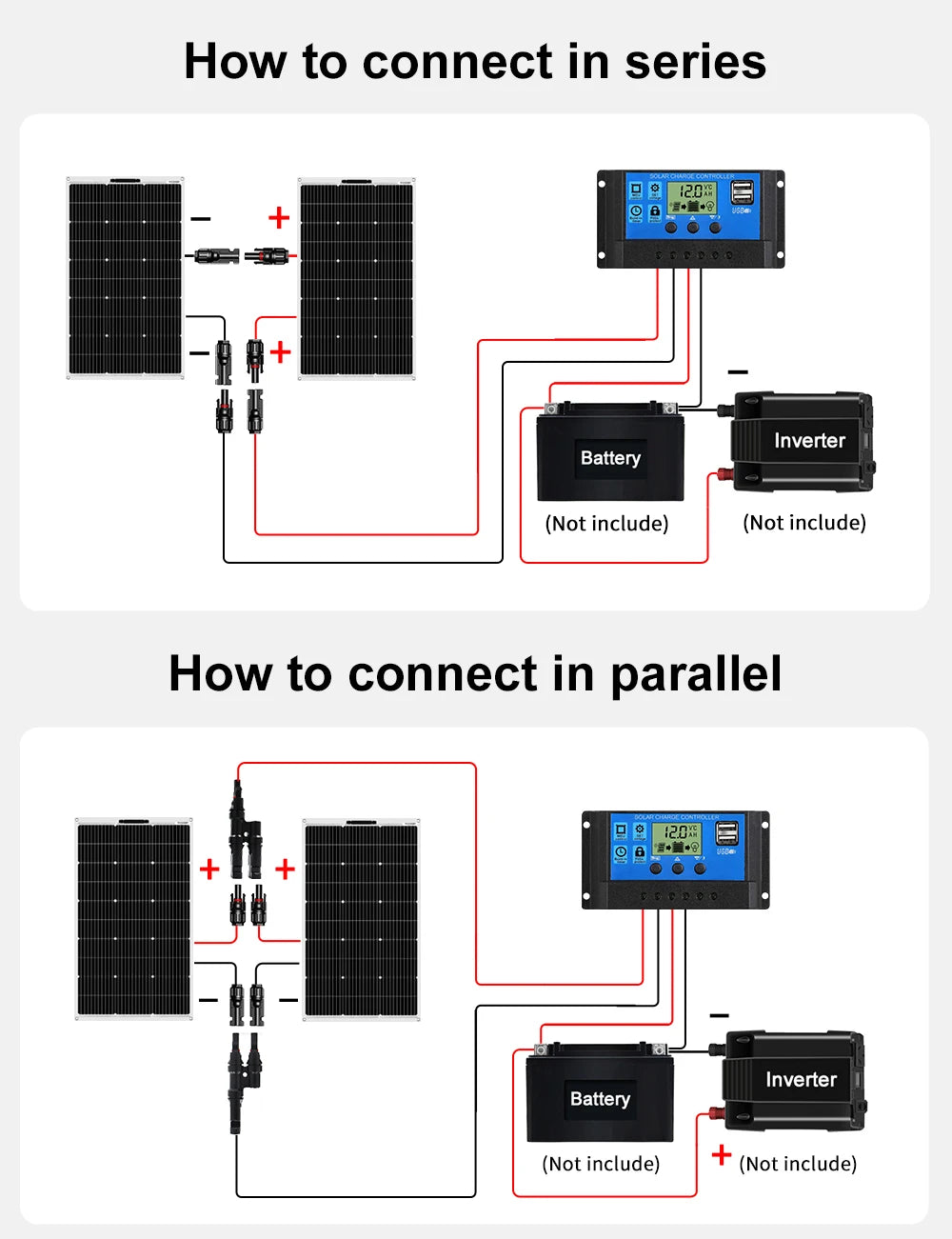

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5         IRRADIANCE=1000W/m2        Temp.=25℃

(The size is manually measured and there is a certain error. Customers who want accurate size please don't buy，thank you）

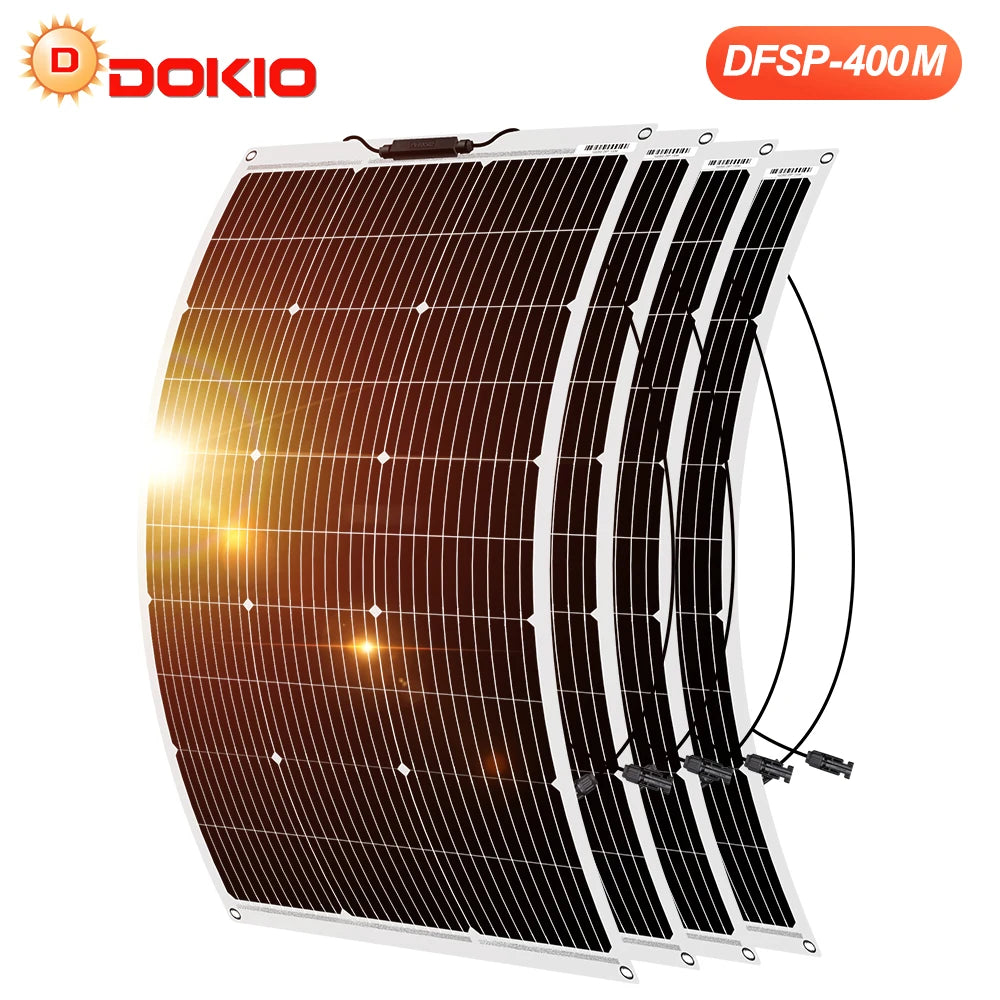

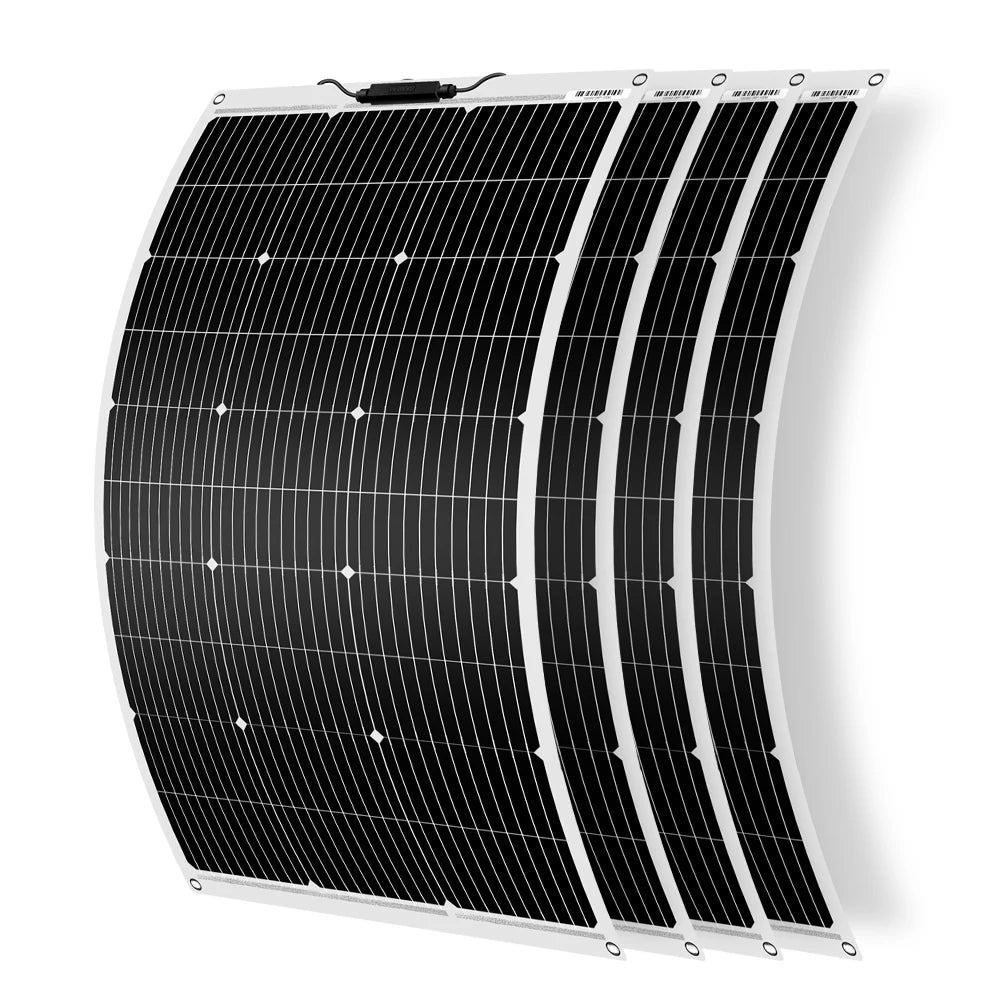

Product display
