SPECIFICATIONS

Brand Name: other

Certification: CE,RoHS

Flexible Solar Panel: Yes

Foldable Solar Panel: No

Material: Monocrystalline Silicon

Module Efficien: 19.1%

Origin: Mainland China

Type: Solar Panel

is_customized: Yes

• 📢 Notice:
  🇫🇷 This is the local store of Sunbro Store in France.
  💶 No additional VAT required!
  🚚 We will ship directly from the EU warehouse.
  ✅ EU customers, please rest assured to buy!

Technical Specifications
Model: LS-240W
Type Name: FLEX240MD(BK)
Maximum Power (Wp): 240W
Cell No.: MONO182 (6×12)
Connection: Parallel
Open Circuit Voltage (Voc): 23.60V
Short Circuit Current (Isc): 11.90A
Maximum Power Voltage (Vm): 19.60V
Maximum Power Current (Im): 11.23A
Maximum Series Fuse: 20A
Efficiency: 17.55%
Net Weight: 2.6KG
Cables & Plug Connectors: 2×3000mm / 2.5 mm²

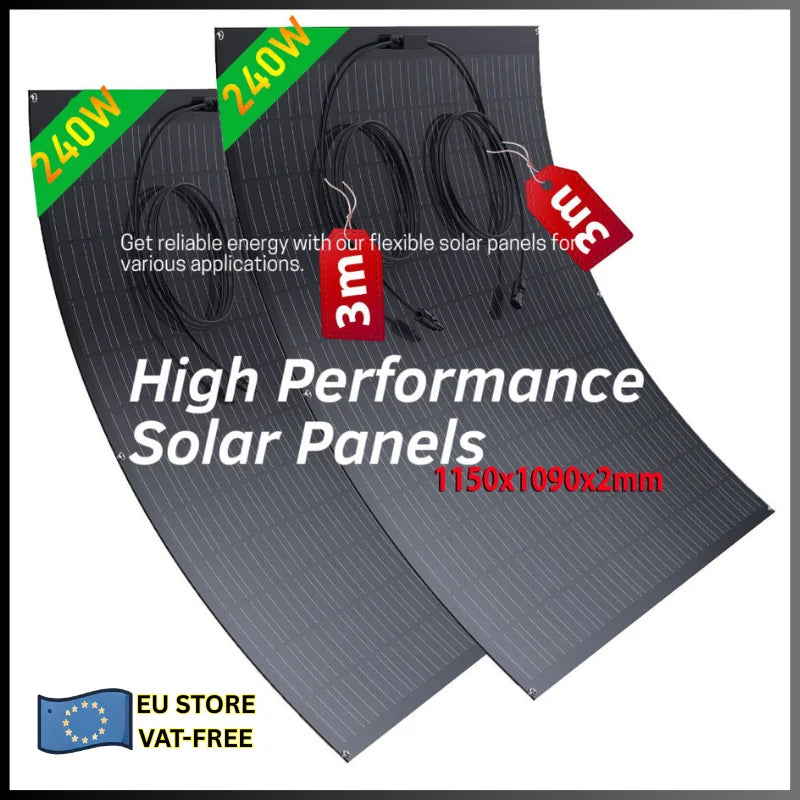

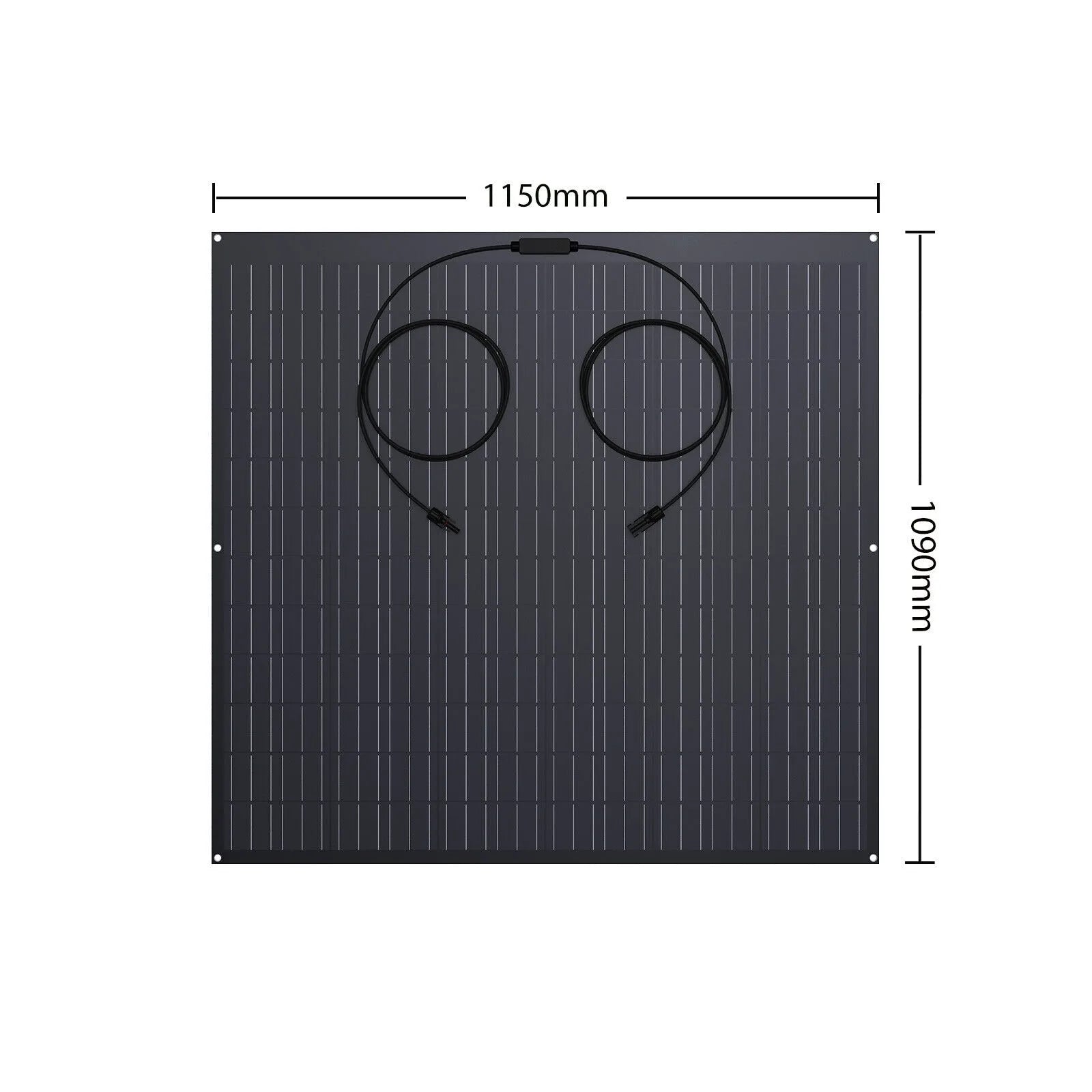

Module Dimensions (L/W/H): 1150×1090×2mm
2 in 1 Carton Dimensions (inner): 1170×1120×30mm
Qty/20GP: 1300pcs
Number of Diode: 2
Power Tolerance: ±3%

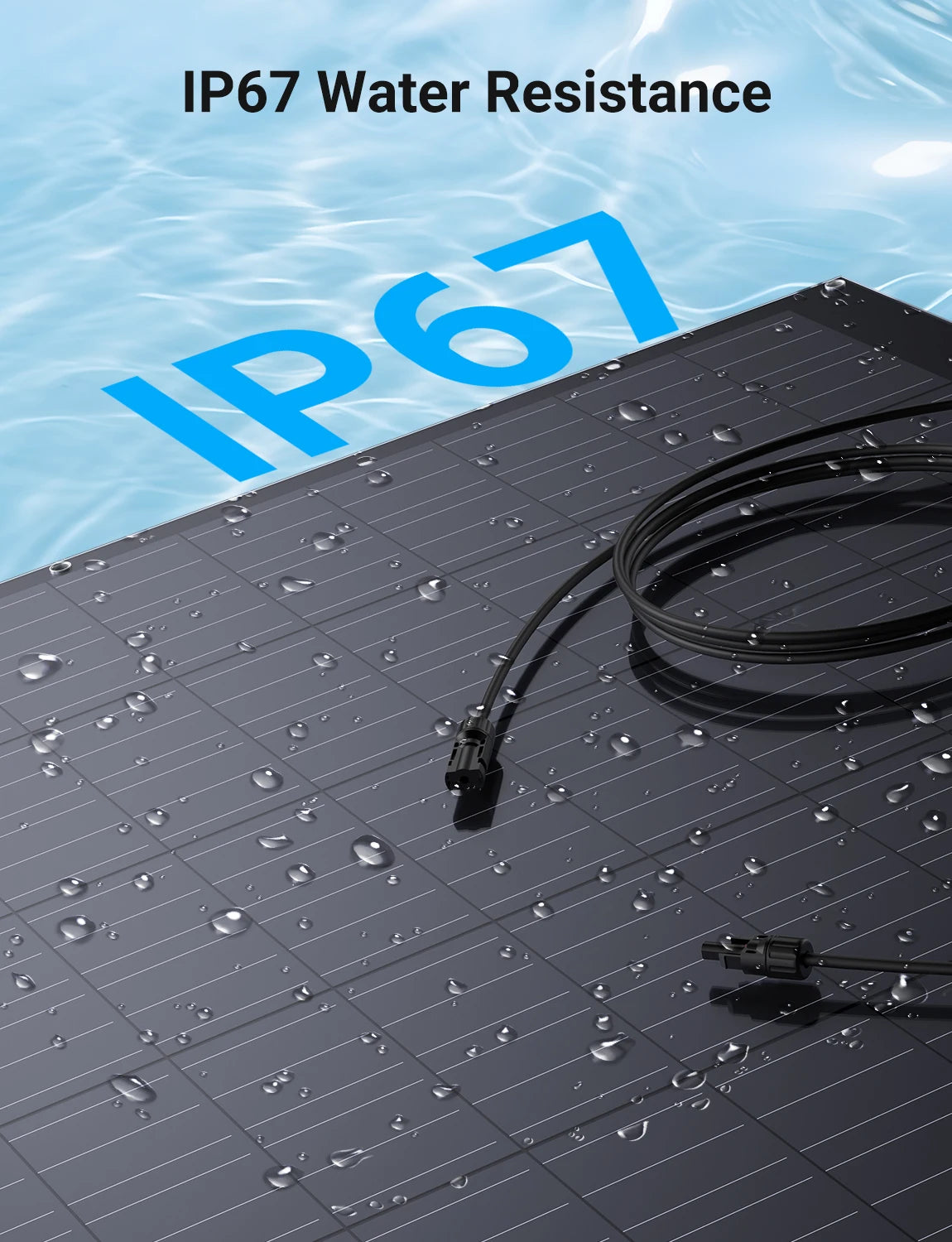

Junction Box (Protection Degree): ≥IP67
Maximum System Voltage: 600V/DC
Temperature-Coefficient Isc: +0.08558%/°C
Temperature-Coefficient Uoc: -0.29506%/°C
Temperature-Coefficient Pmpp: -0.38001%/°C
Operating Temperature: -40°C ~ +85°C
Standard Test Conditions: 1000W/M², 25°C, AM1.5
Certificate: CE

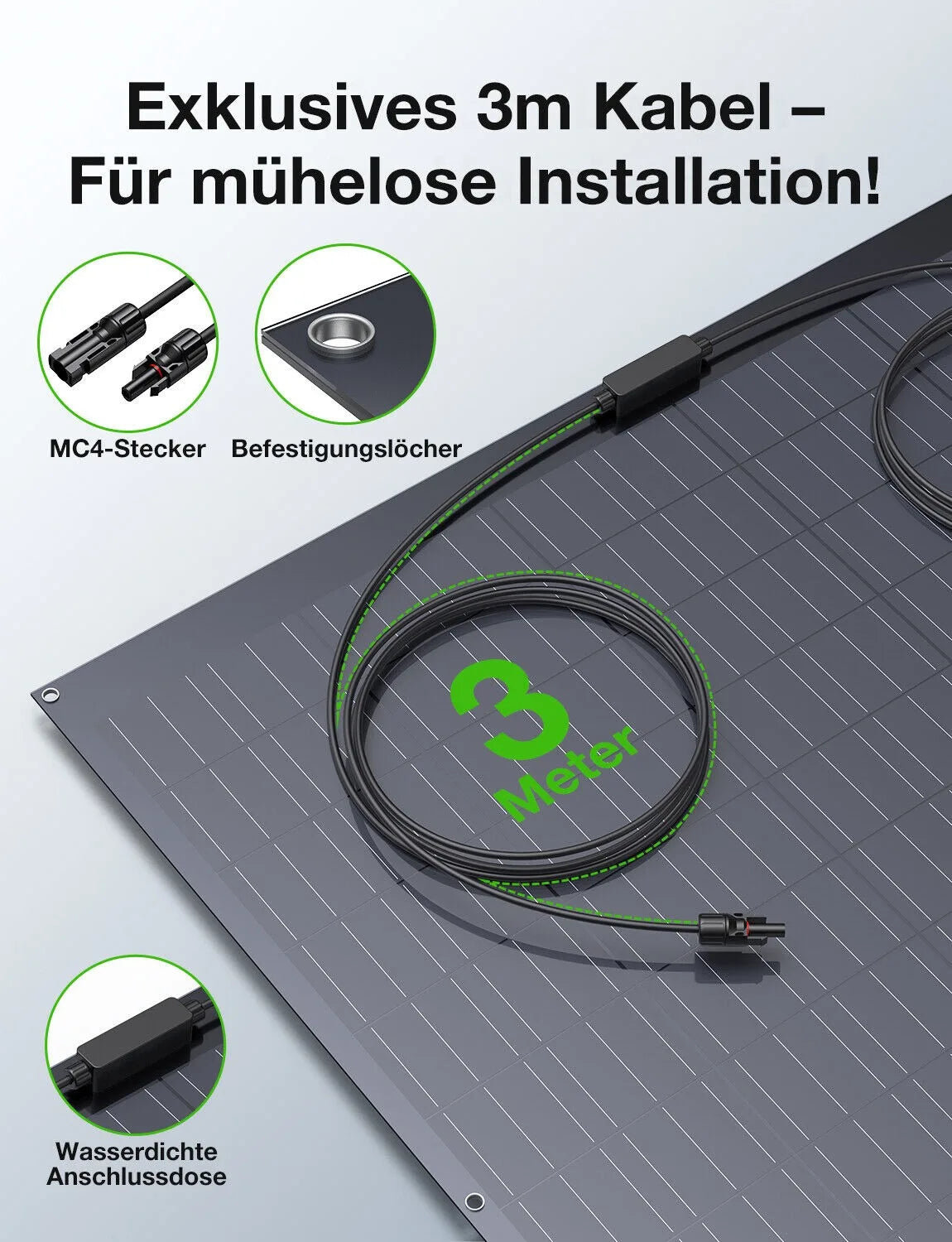

3m Solar Cable – Easy Installation!

✔ MC4 Connectors – Secure & reliable
✔ Mounting Holes – For stable fixing
✔ Waterproof Junction Box – Weather-resistant

Features:

• 3m Length – Flexible setup

• Durable Design – Long-lasting performance

• Plug & Play – Ready to use

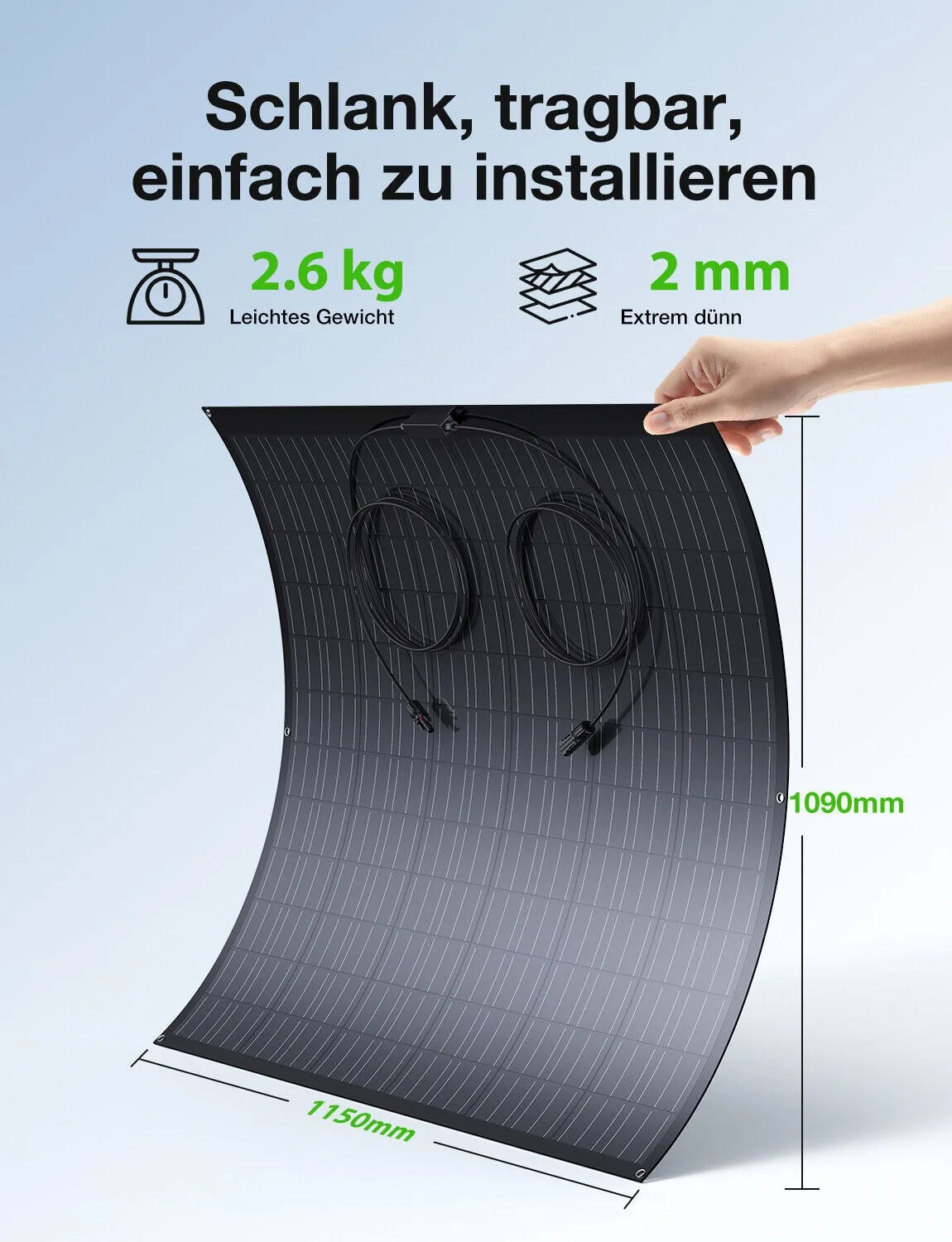

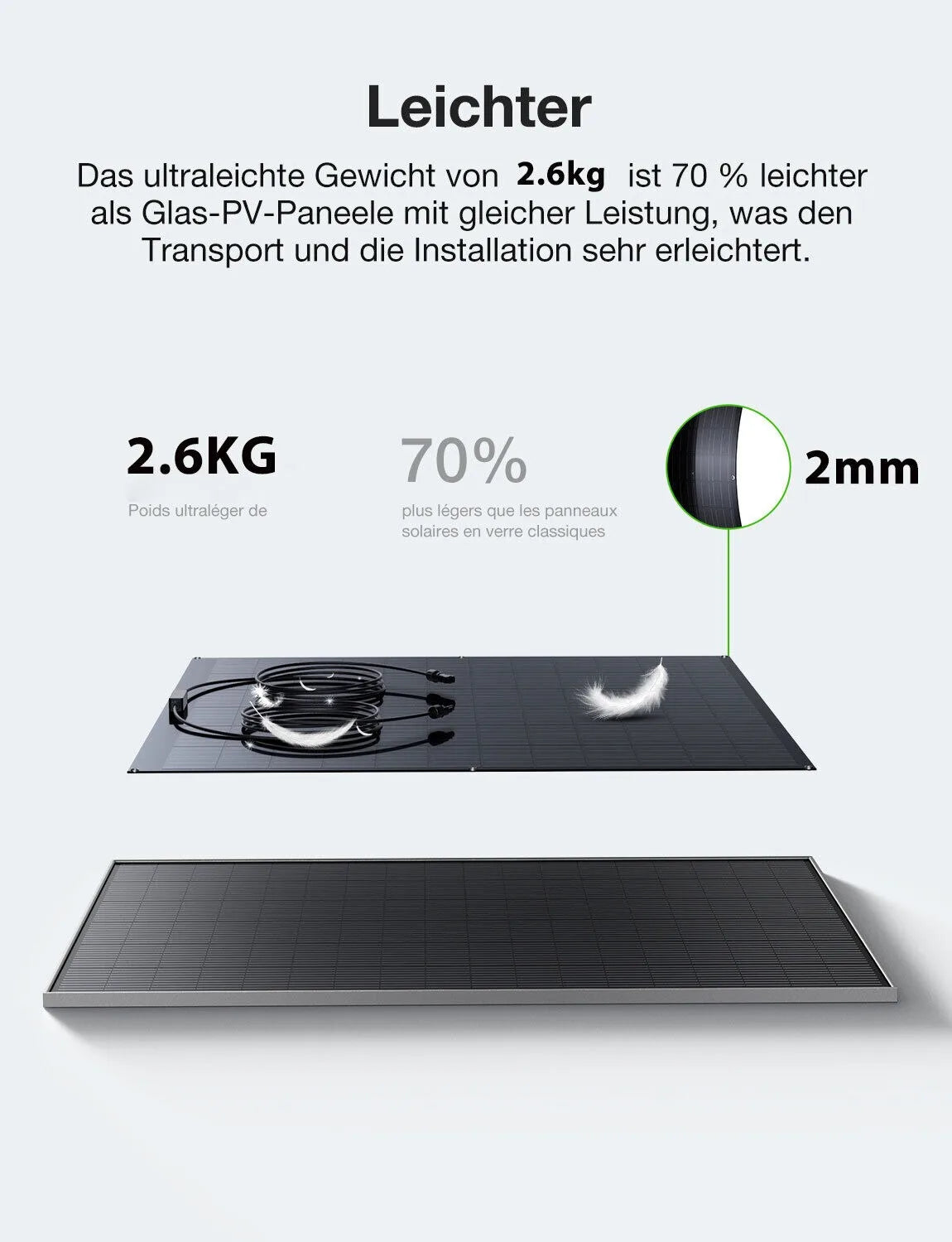

Ultra-Lightweight Solar Panel - Only 2.6kg!

✔ 70% Lighter than traditional glass solar panels
✔ Just 2mm Thick - Slimmest profile in the market
✔ Same Power Output with revolutionary weight reduction

Technical Advantages:
✓ 2.6kg ultra-light frame
✓ 2mm ultra-thin design

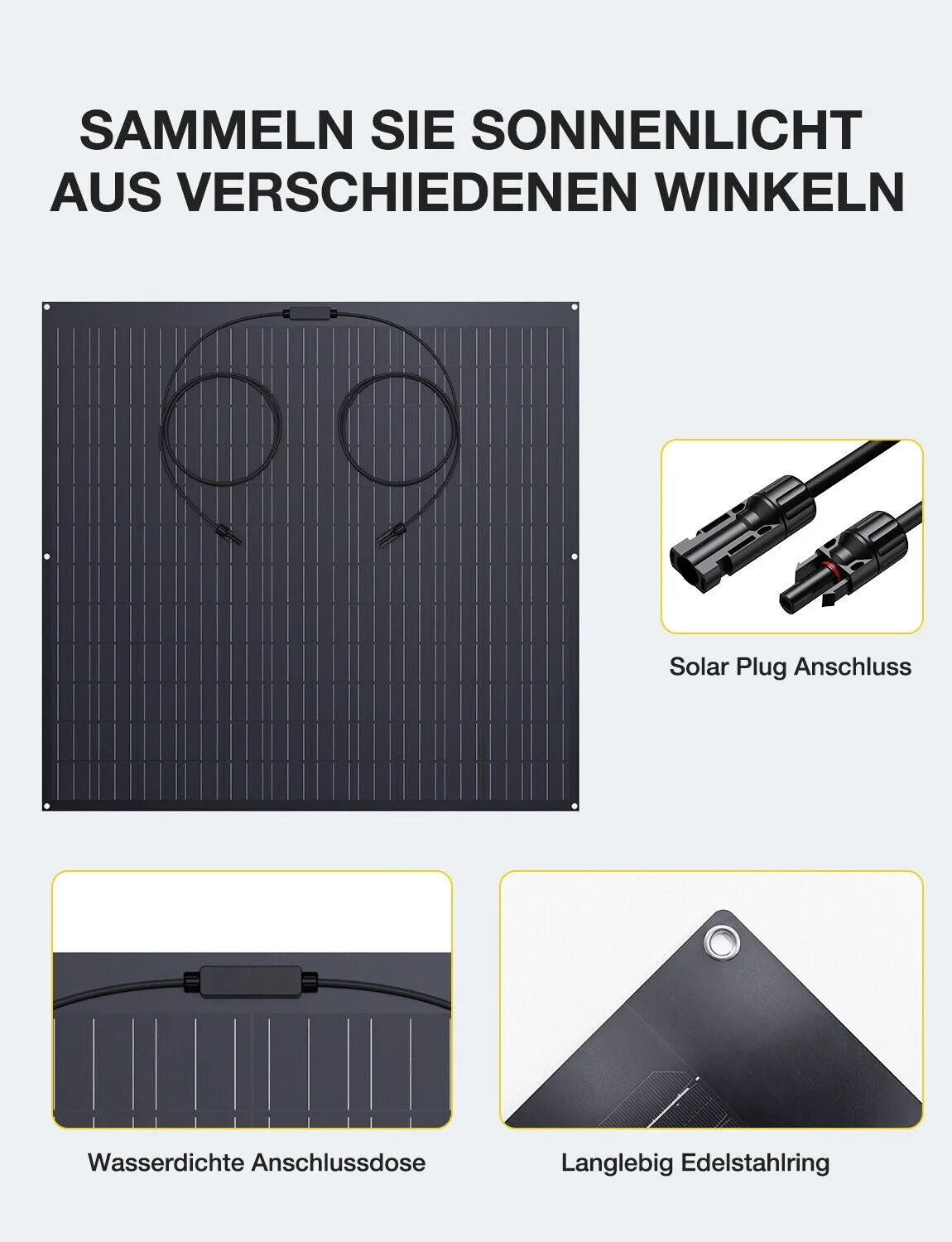

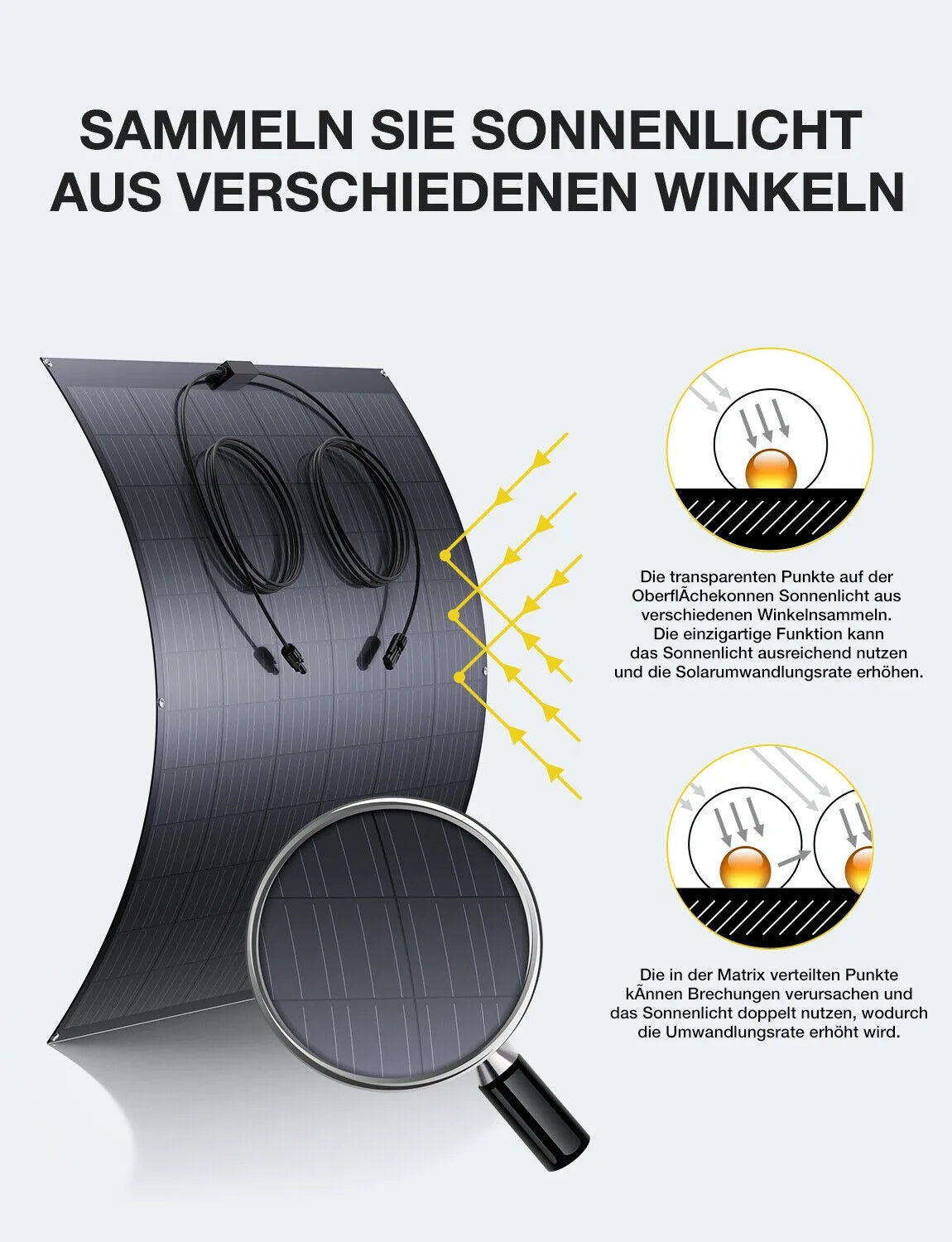

✓ Equal performance to heavy glass panelsMulti-Angle Sunlight Capture Technology

✔ Omnidirectional Light Absorption - Special dot matrix surface collects sunlight from all angles
✔ Dual Light Utilization - Patented refraction technology doubles solar conversion
✔ 30%+ Efficiency Boost - Compared to conventional flat panels

How It Works:
• Transparent Dot Matrix refracts incoming sunlight
• 360° Performance - Effective even at low sun angles
• All-Day Power - Morning to evening generation

Key Benefits:
✓ Higher energy yield in limited spaces
✓ Better performance in cloudy conditions
✓ Ideal for fixed installations where tracking isn't possible

Perfect For:
• Residential rooftops
• Urban environments
• High-latitude locations

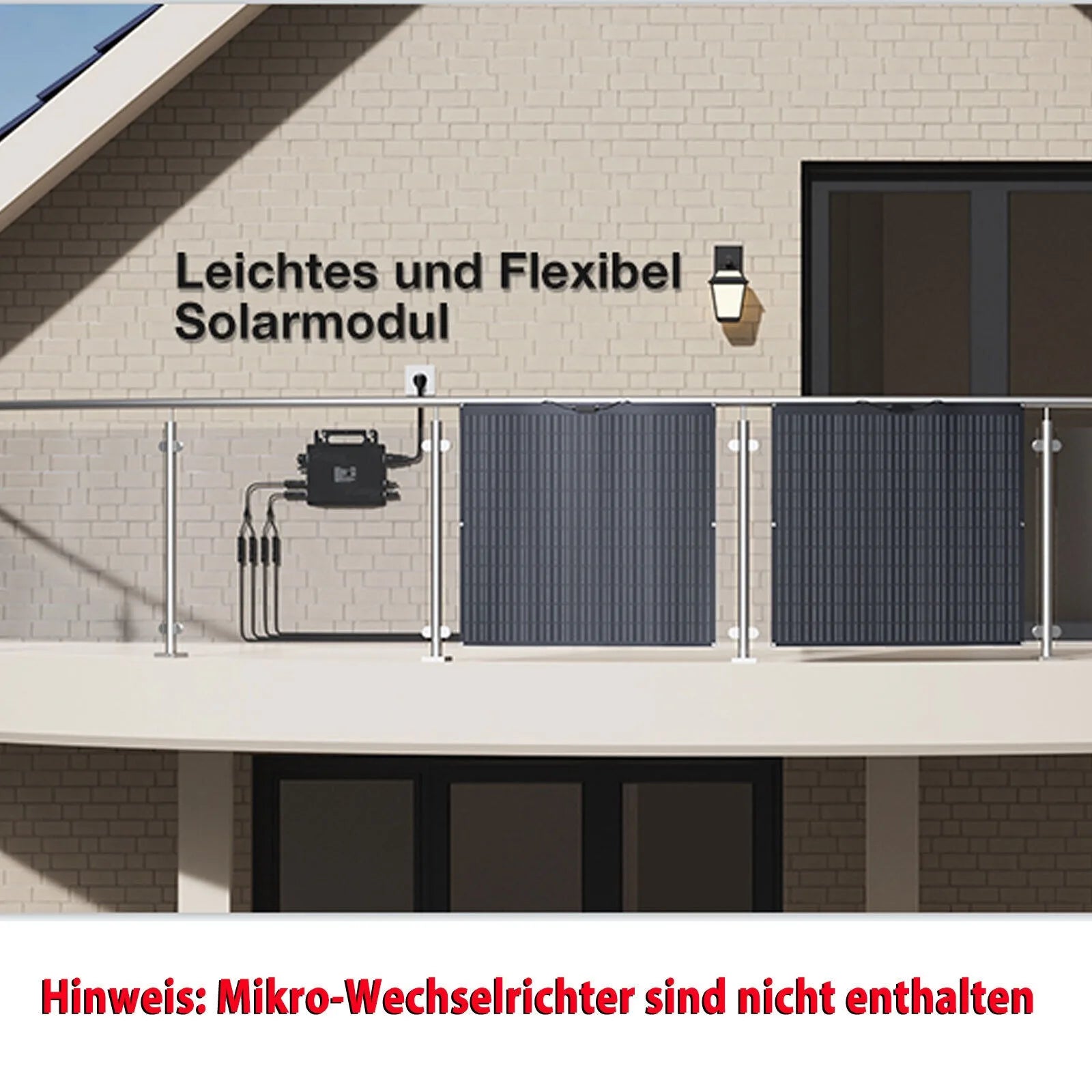

Lightweight & Flexible Solar Panel

✔ Ultra-portable design for easy installation

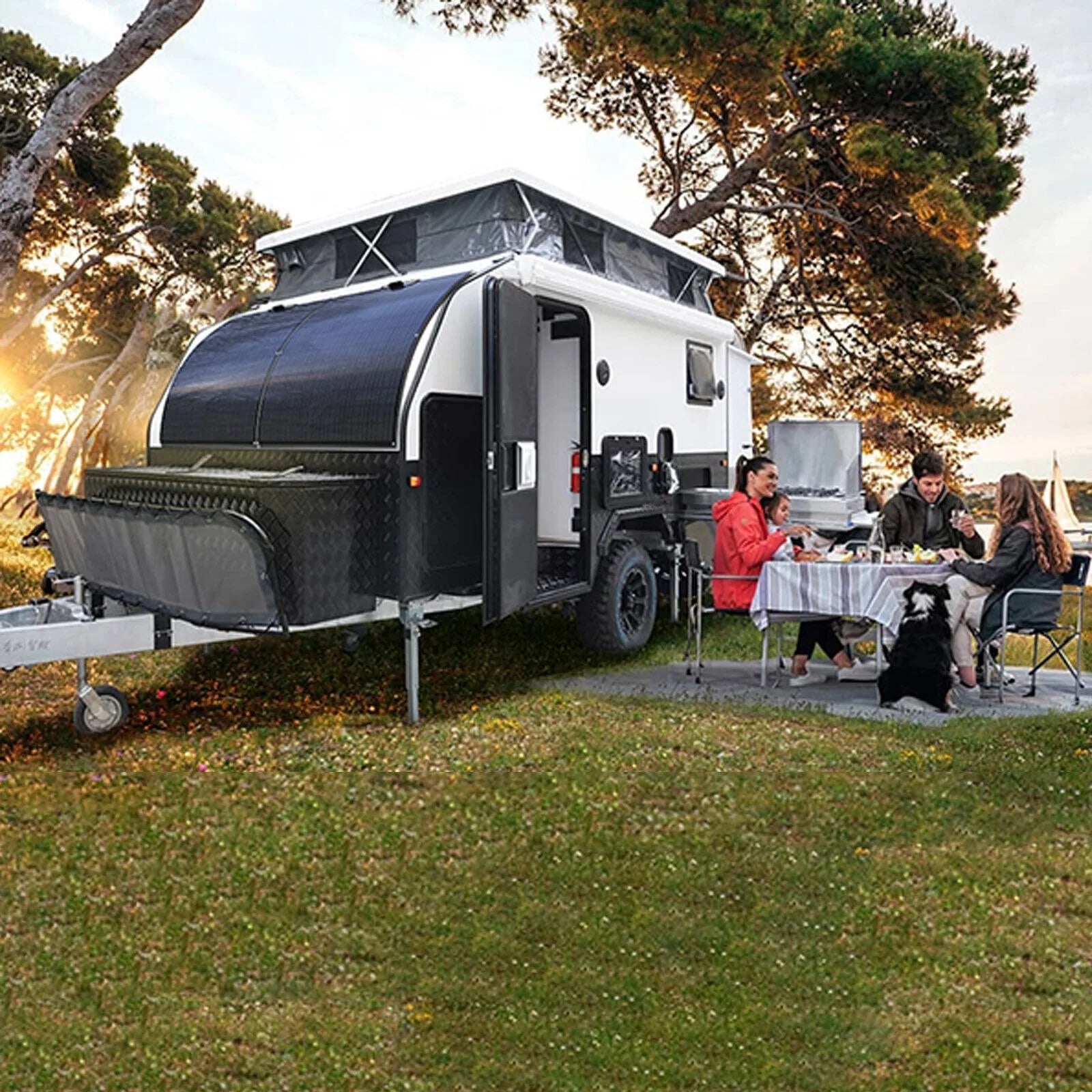

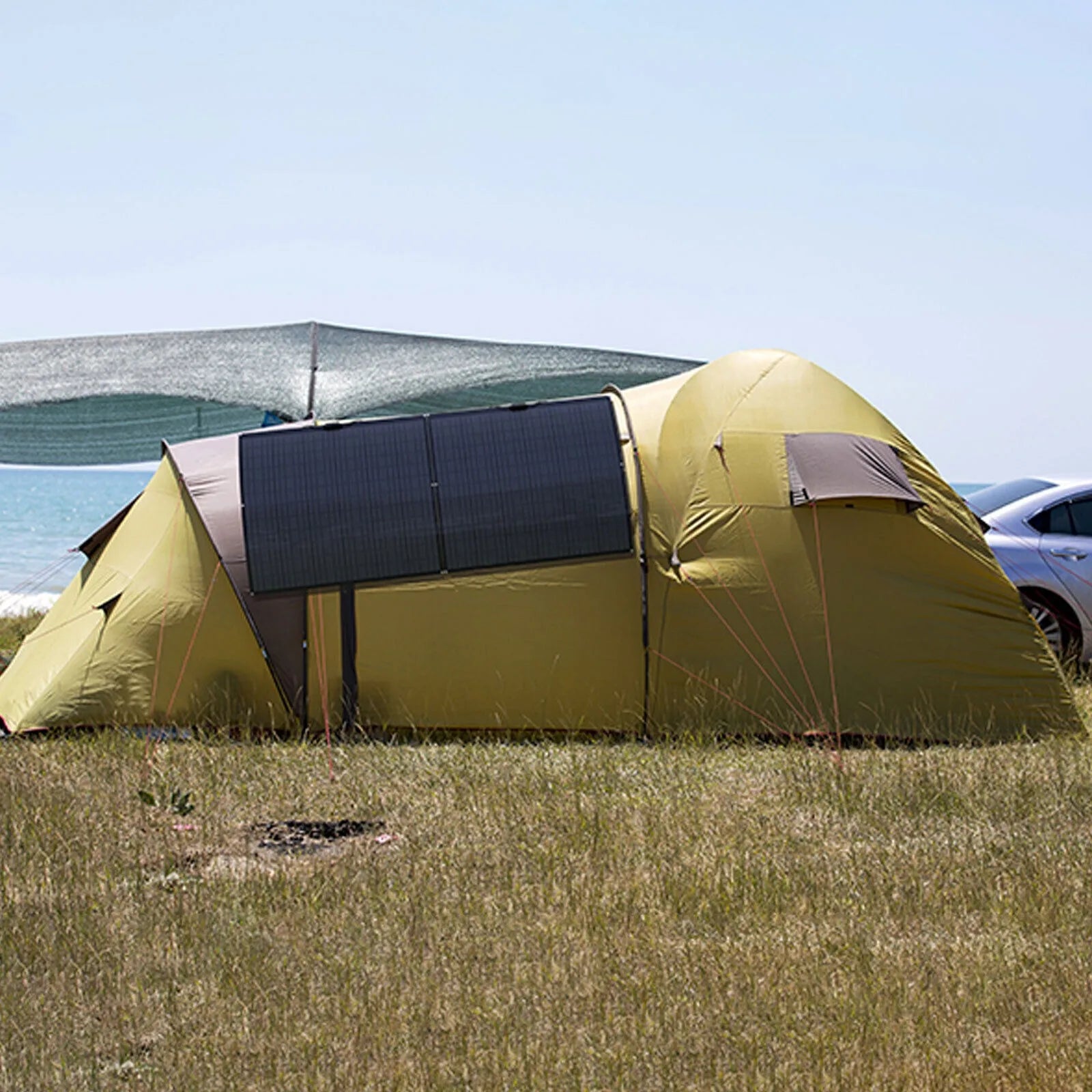

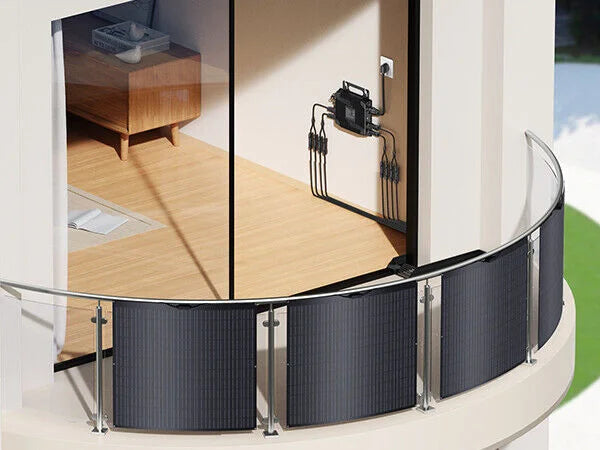

✔ Bendable to fit curved surfaces (roofs, RVs, boats)
✔ High-efficiency cells for reliable power generation

Key Advantages:

• Only 2.5kg - Easy to carry and mount

• 360° flexibility - Adapts to unique installation needs

• Weather-resistant - Works in harsh conditions

Perfect for:

• Mobile power solutions

• Irregular surfaces where rigid panels won't fit

• DIY solar projects

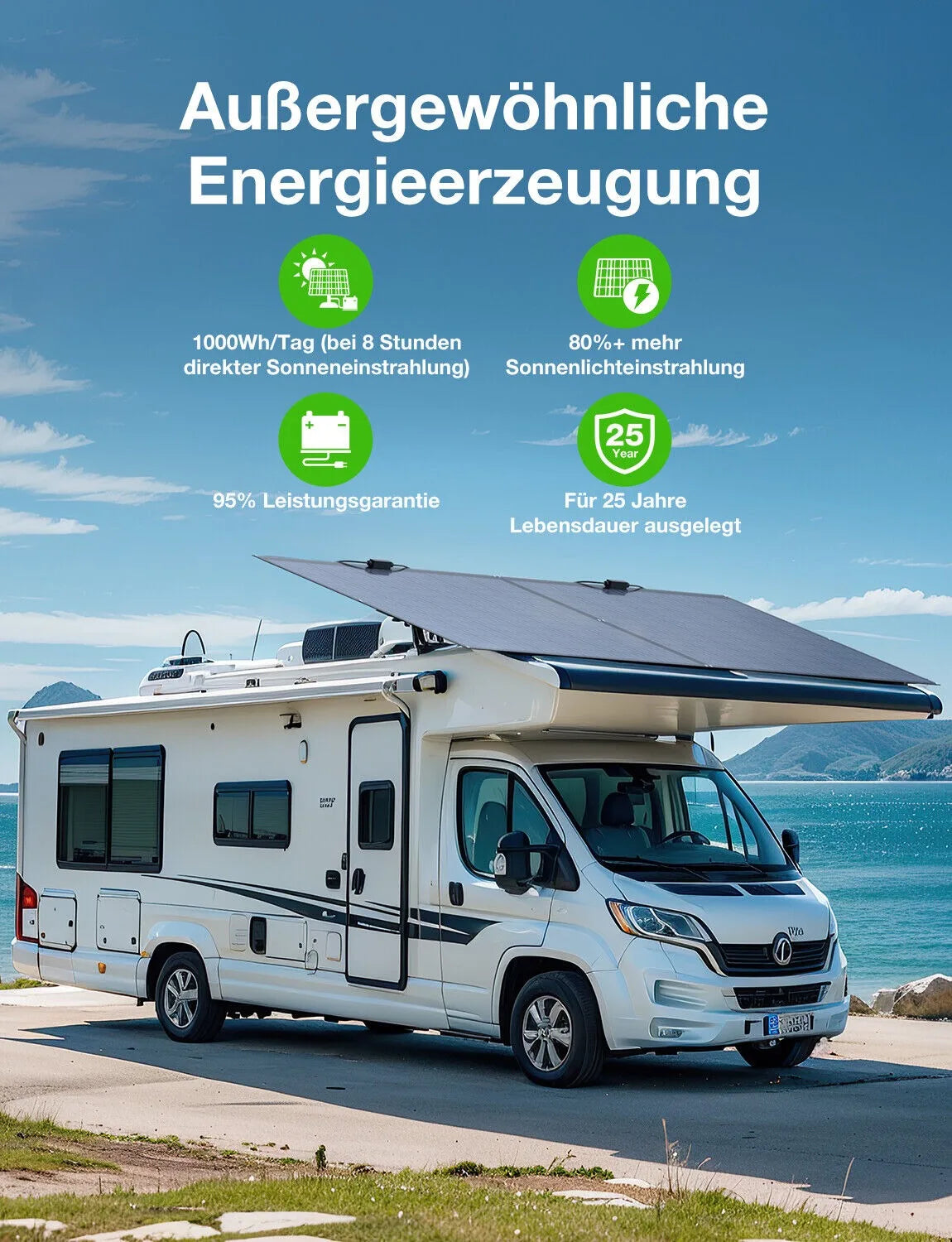

Exceptional Solar Power Generation

✔ 1,000Wh/Day – With 8 hours of direct sunlight
✔ 80%+ Sunlight Absorption – High-efficiency performance
✔ 95% Power Output Guarantee – Reliable long-term energy

Designed for 25-Year Lifespan – Built to last decades
