SPECIFICATIONS

3G network: WCDMA

4g netowrk: LTE FDD/TDD

Aperture: F1.4

Brand Name: SZGOING

Customized support: OEM,ODM cctv camera

Data Storage Options: HDD

Function: Waterproof / Weatherproof,Wide Angle,Built-In Siren,Pan-Tilt,Night Vision,Alarm I/O

IP Rating: IP66

IR night vison: 100M

Lens: 3.2-96mm

Material: Aluminium,ABS

Model Number: solar farm cctv surveillance cameras

Optical zoom: 30X optical zoom

Pixels: 8 MP

Place of Origin: Guangdong, China

Resolution: 8MP solar cctv camera

Sensor: CMOS

Solar: 200w Solar Panel

Solar bracket: Aluminium alloy solar bracket

Special Features: Built-In Siren,Night Vision,Motion Detection,Solar cctv camera

Style: PTZ Camera

Technology: solar farm cctv surveillance cameras

Video Compression Format: H.265

Viewing Angle: 360

Warranty: 1 Year

WiFi network: 802.11N/G/B,2.4G

ptz Speed: Max 80deg/s

Solar Camera System with Red Blue Alarm Light

Hik-Connect App Solar PTZ Camera System with Alarm

2PCS 4K 8MP 30X Optical PTZ Camera System Just Need 1 Sim Card

Different Zoom and Weather Recorded

(The video has been converted and compressed, and the actual effect will be better)

Product Description

Won't give intruders any chance!

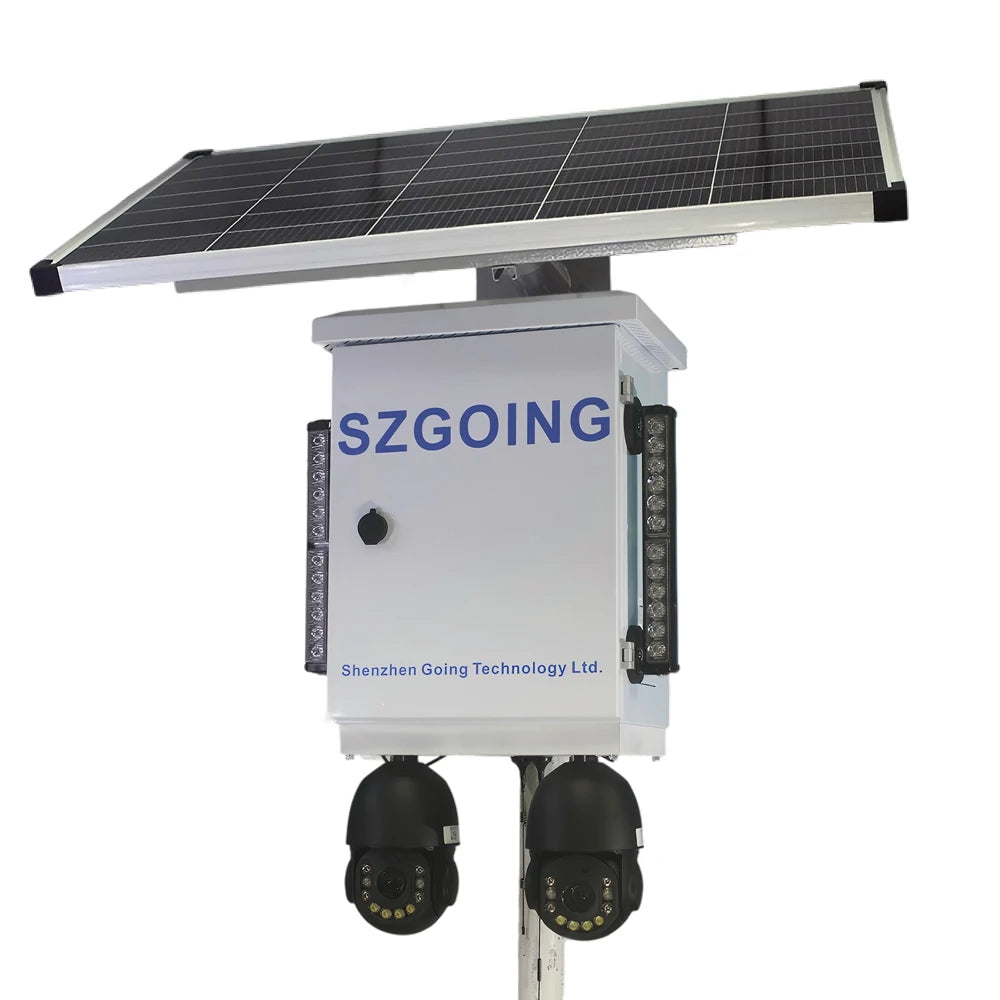

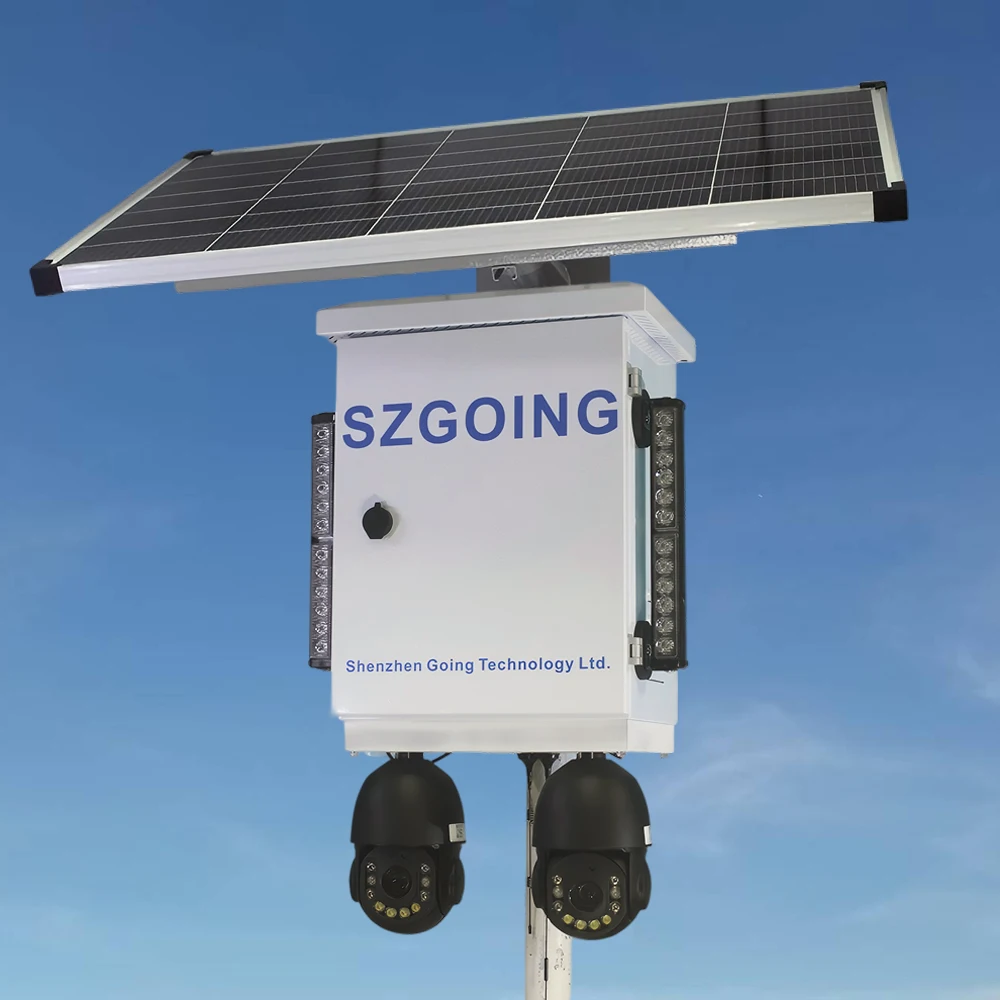

4K 8MP PTZ 30X Zoom Solar Cameras system

Model #：

BS200-A2P4K30X-1T-FL-HIK (8MP)

*It can work at anywhere without power and internet.

*It runs by solar power and supports both & 4G WiFi network.

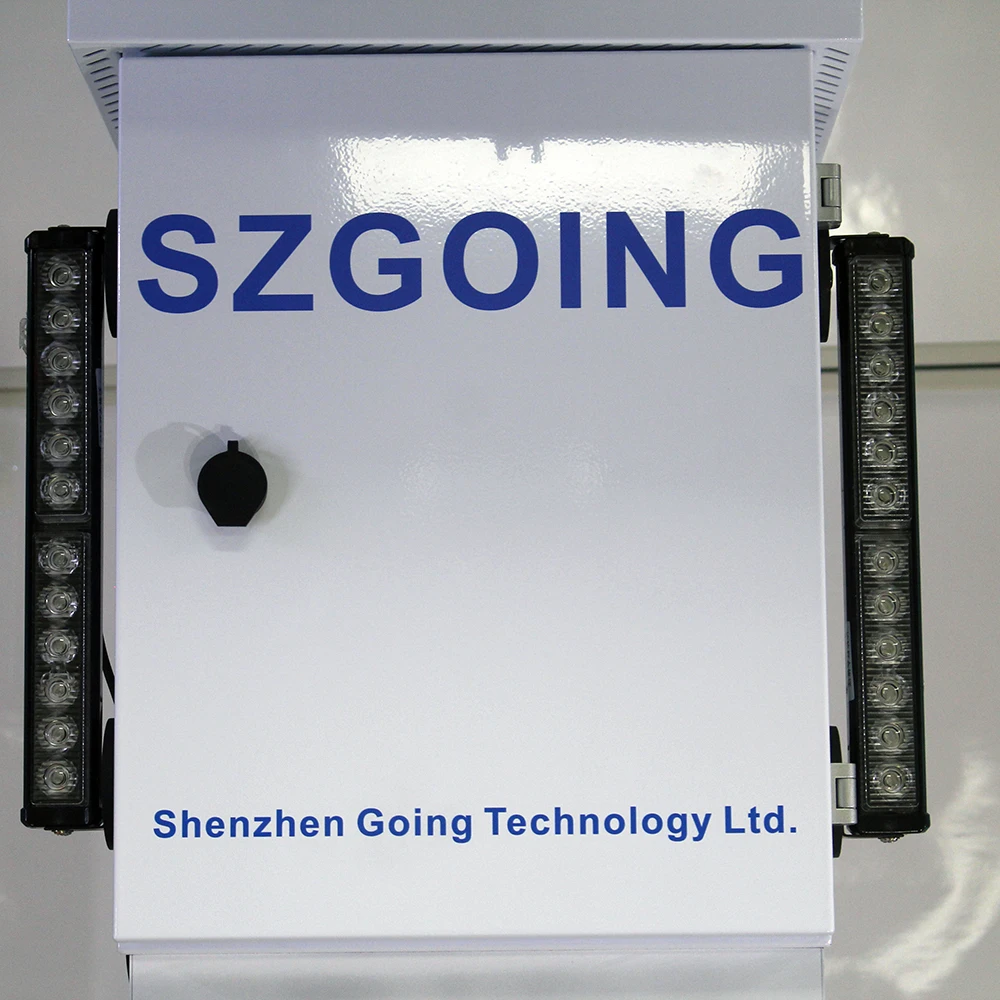

*200W solar power system,Aluminium alloy solar bracket,IP66 high quality equipment box.

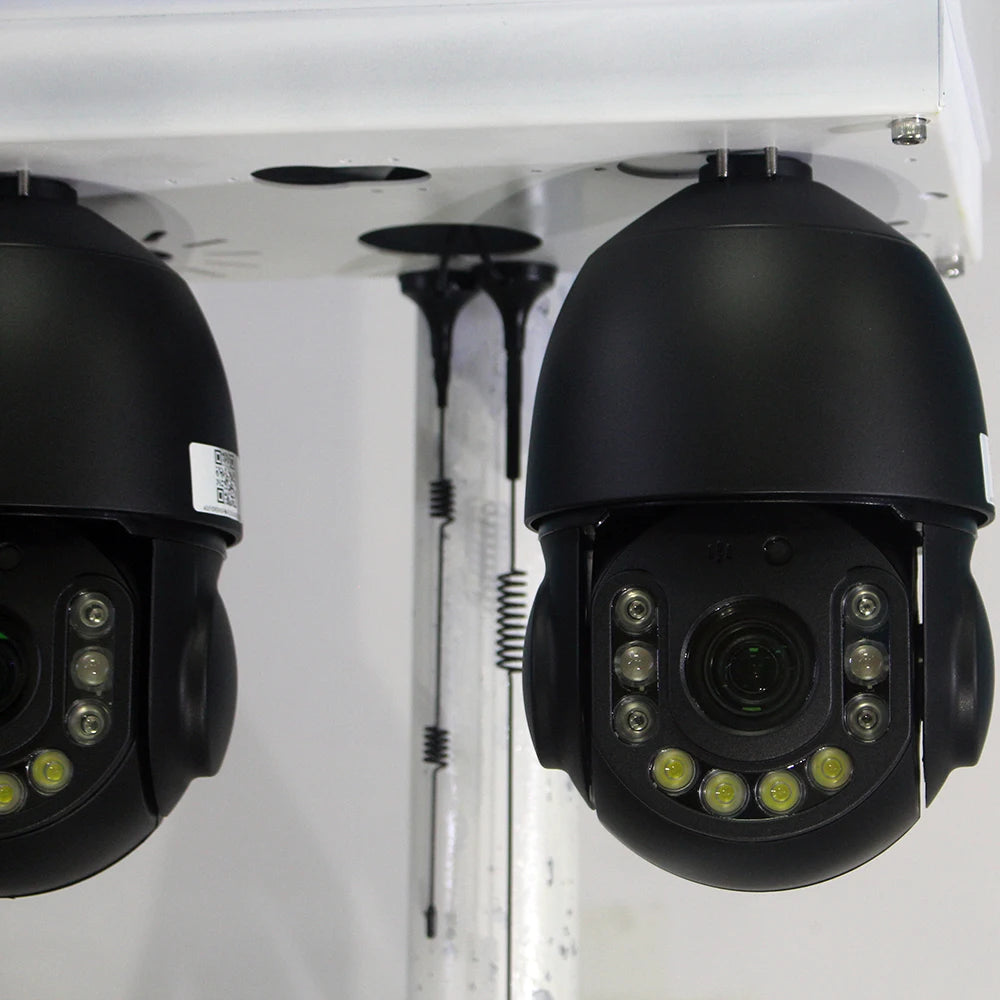

*2pcs 8MP 30x Optical Zoom SONY415 ptz camera.
*1024GB HIK VISION NVR System for recording all the time or just motion record.

Main Parameters:

1. 200W solar power system and Aluminium alloy soar bracket
2. Support both 4G and WiFi network
3. 1024GB SSD HIK VISION NVR System,1024GB SSD inside,Faster access,No need cloud storage fees.
4. Alarm Trigger:By motion detection or Manually Turn on

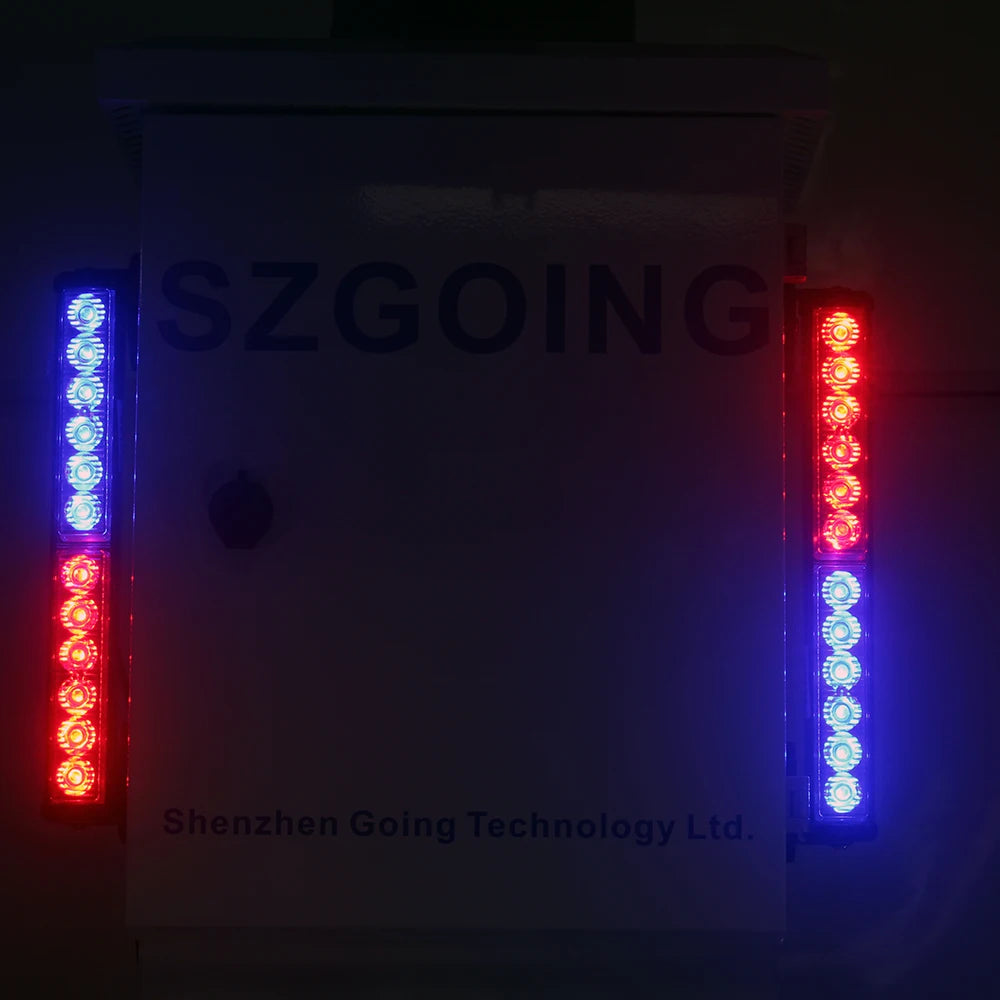

5. Alarm output: Red & Blue Alarm Light

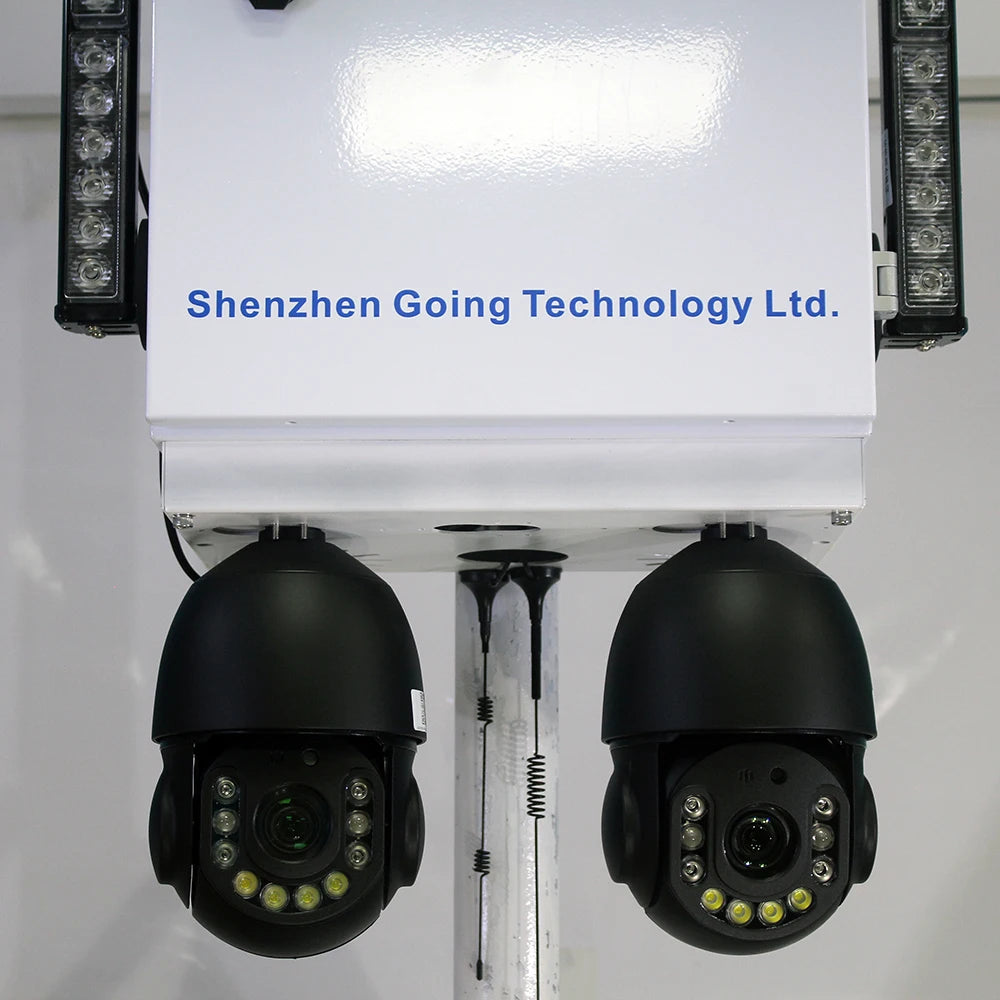

6. 2pcs 8MP 30X Optical Zoom Sony PTZ cameras
7. 100 metter IR night vision,Smart Dual light,Support full color at night time.

8.Support AI human tracking
9. Hik-Connect app
10.Free 64ch VMS software for PC

11.12V20A Power Control System

12.Support any type 12V Battery,Suggest LifePO4 12.8V Battery

It will turn on the alarm sound when somebody near it.

This solar camera use Hik-Connect app,It is easy to view live stream video on APP,Easy to playback video on APP.

And it has free PC client software VMS, This solar cctv camera system includes 1024GB SSD for recording,It can record all the time, Or just record on motion detection.

Hik-Connect App

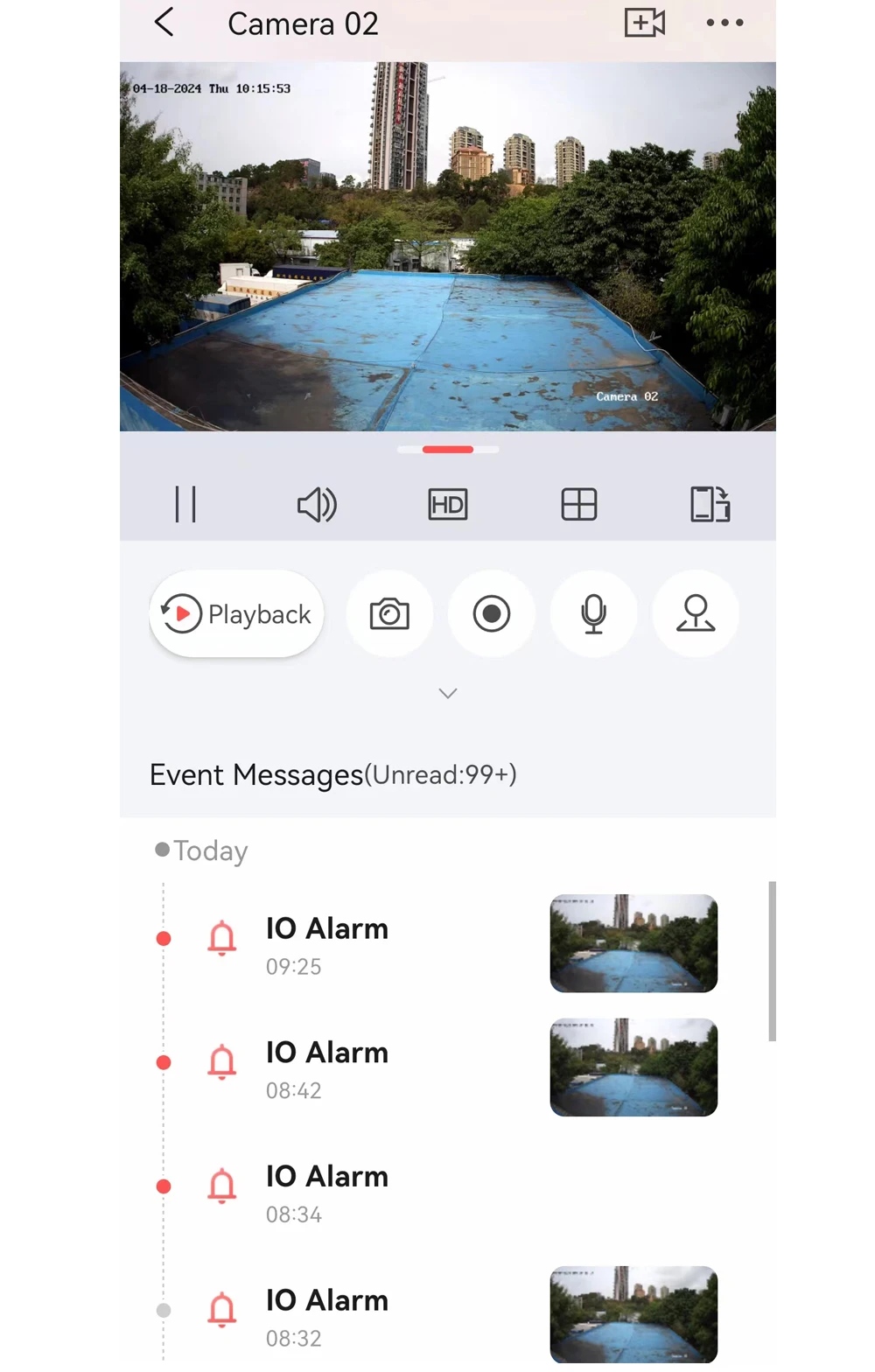

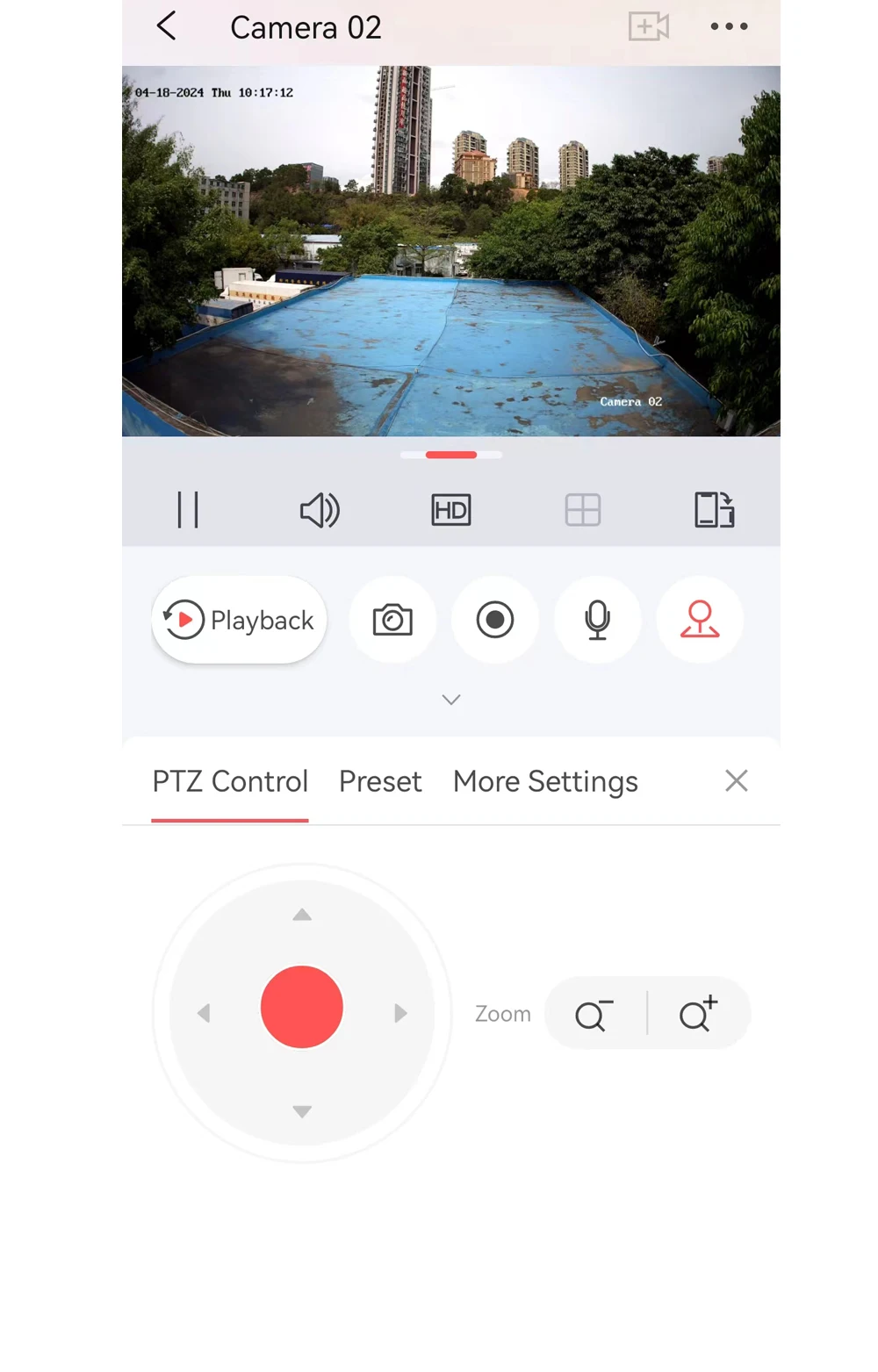

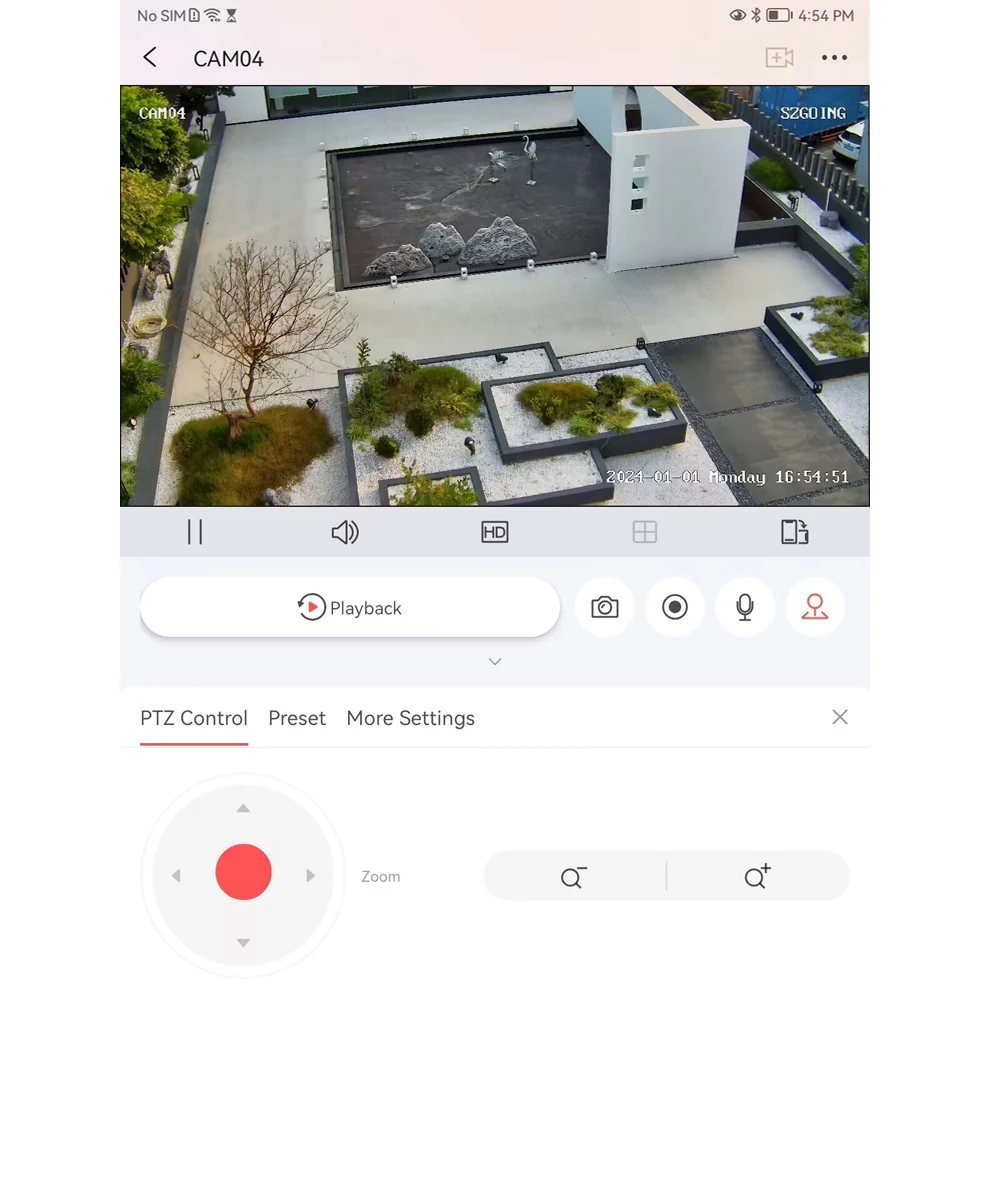

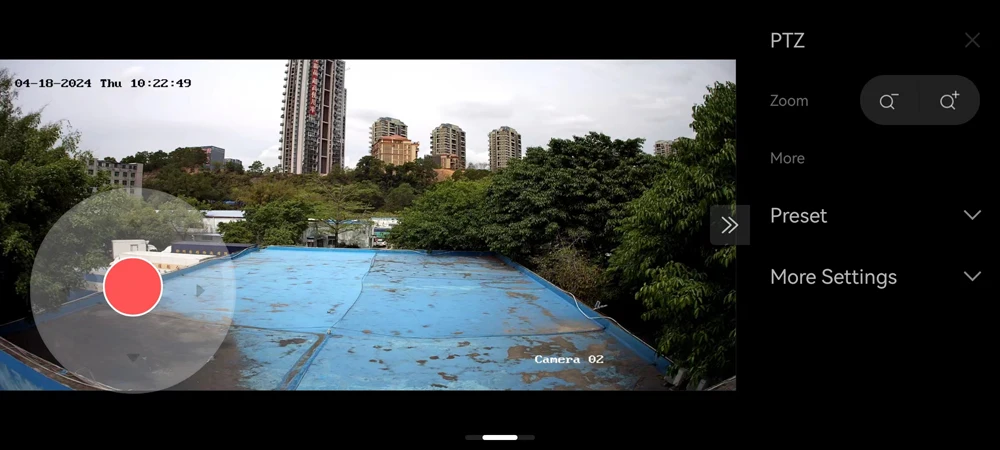

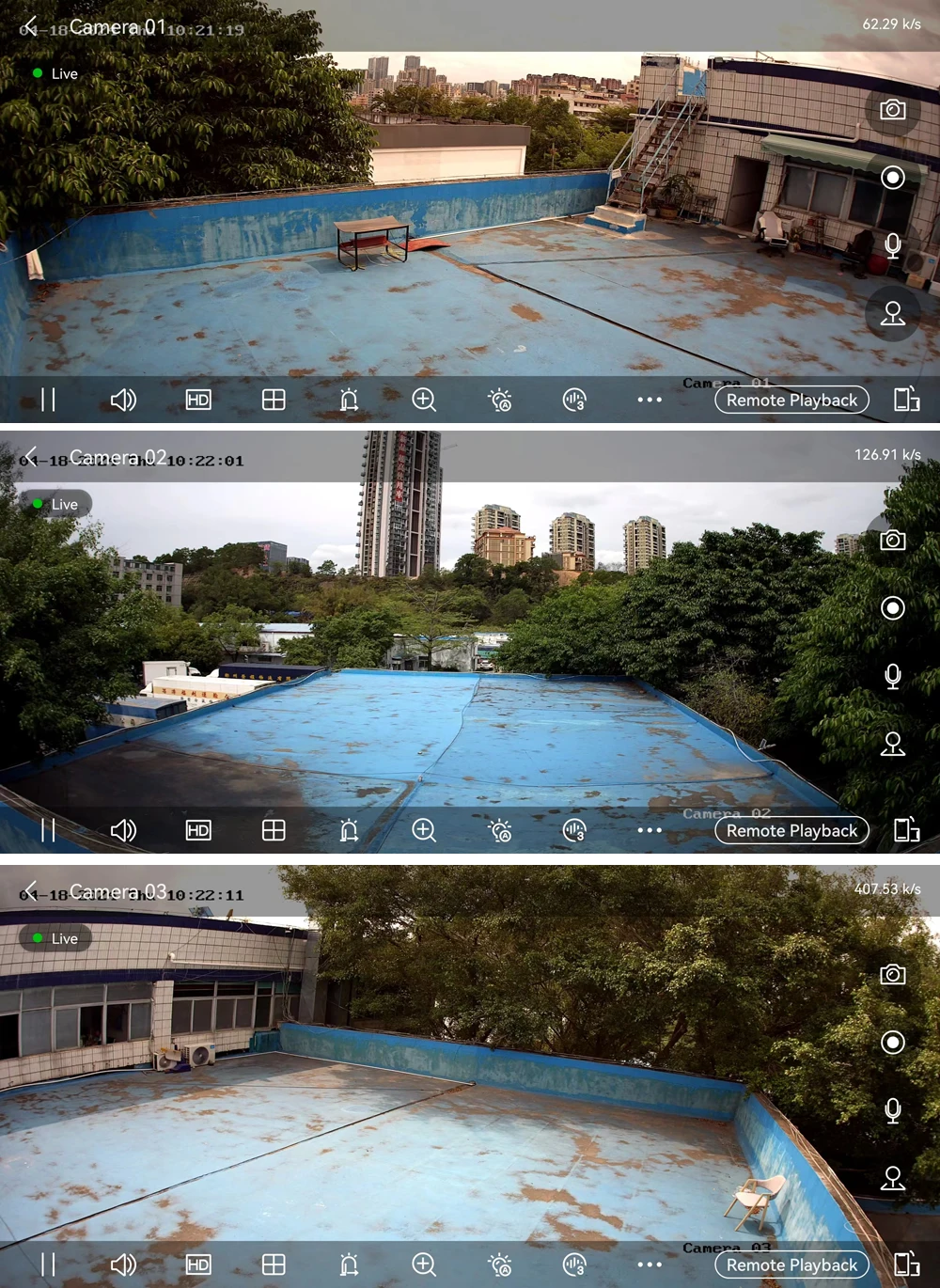

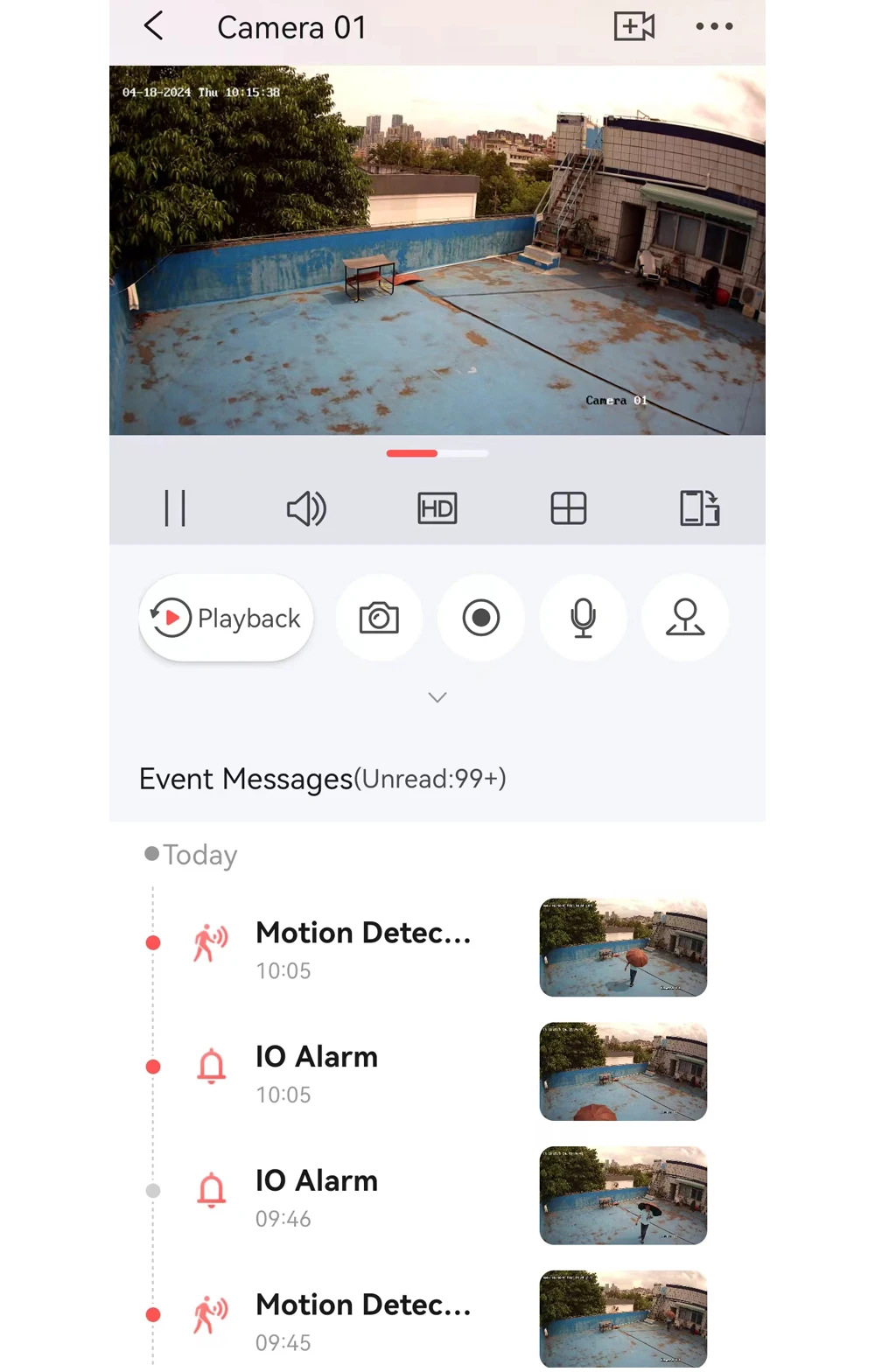

View on Hik-Connect App

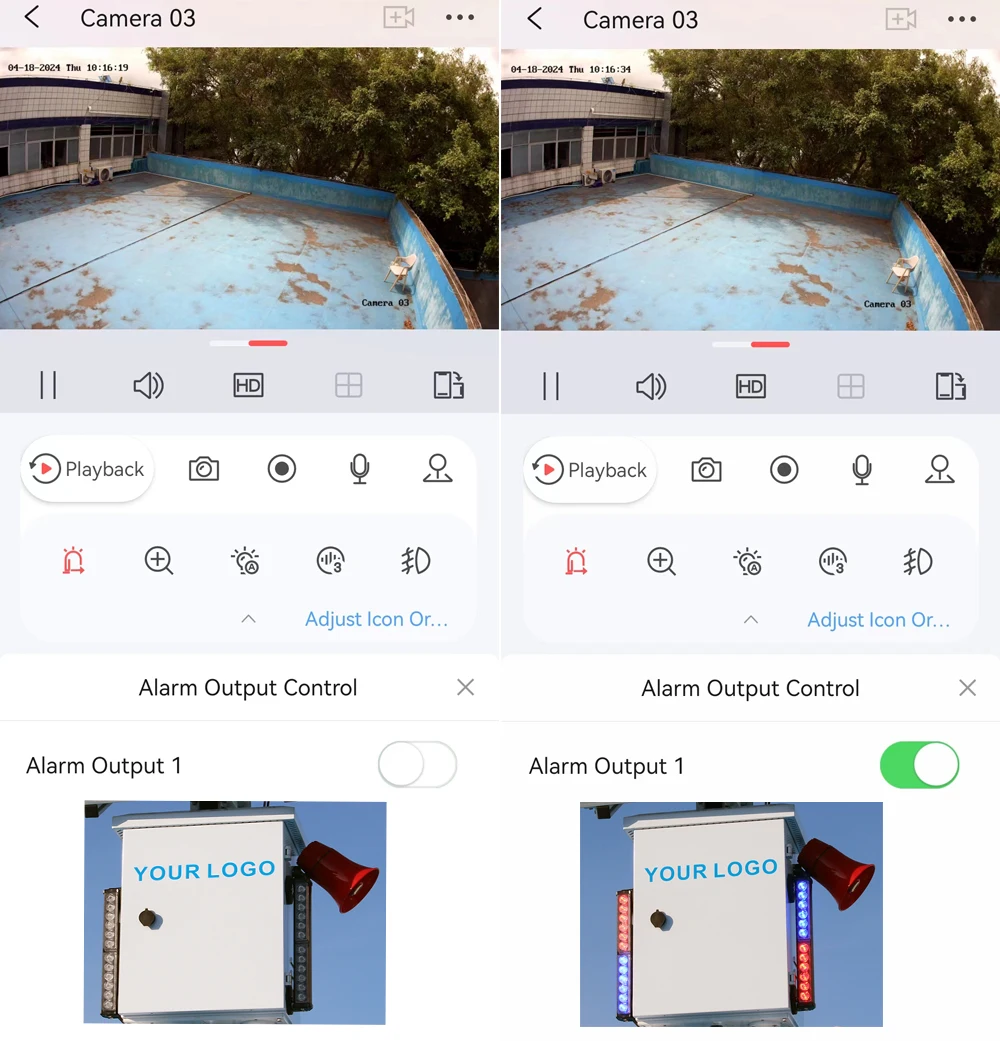

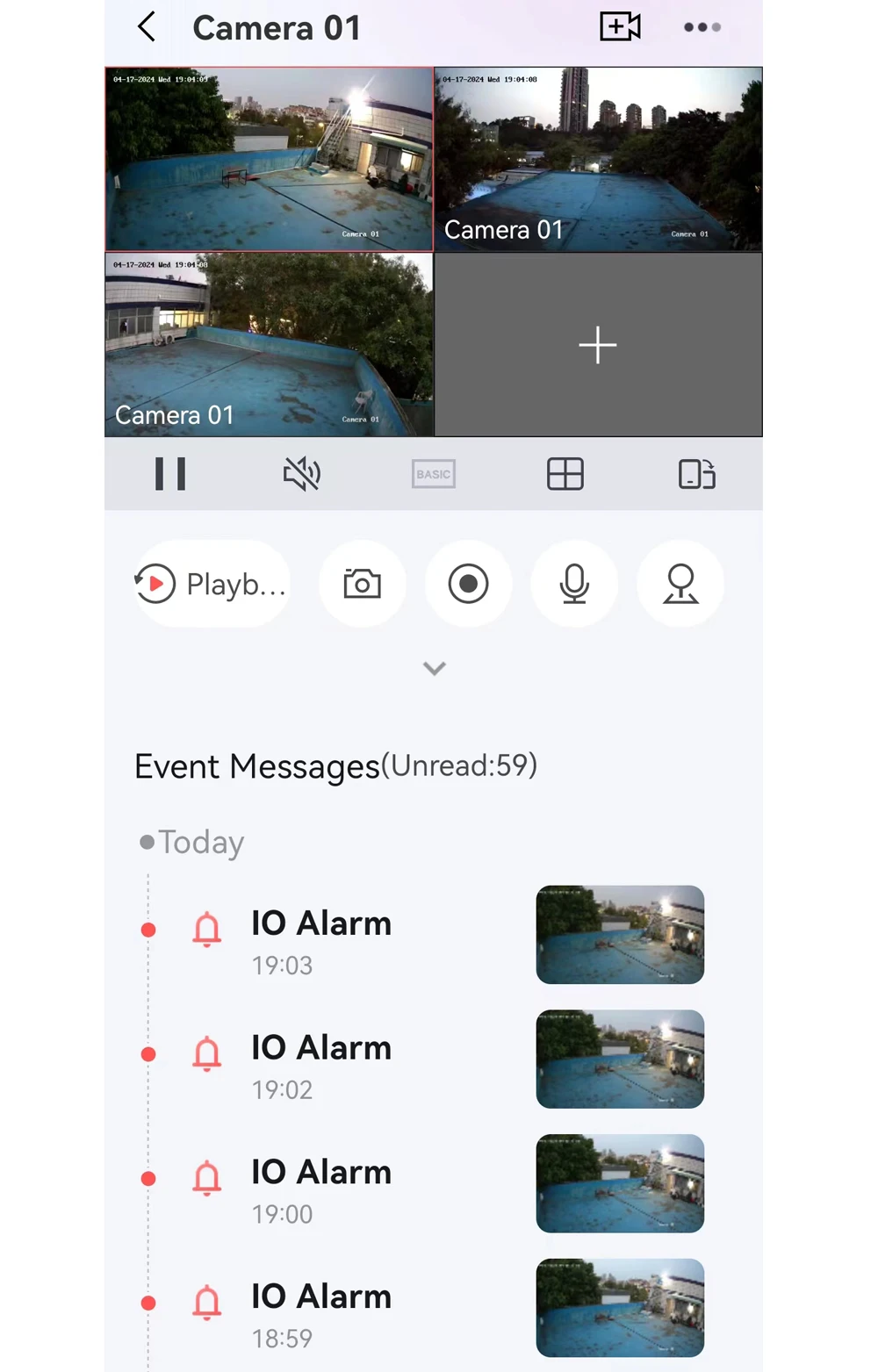

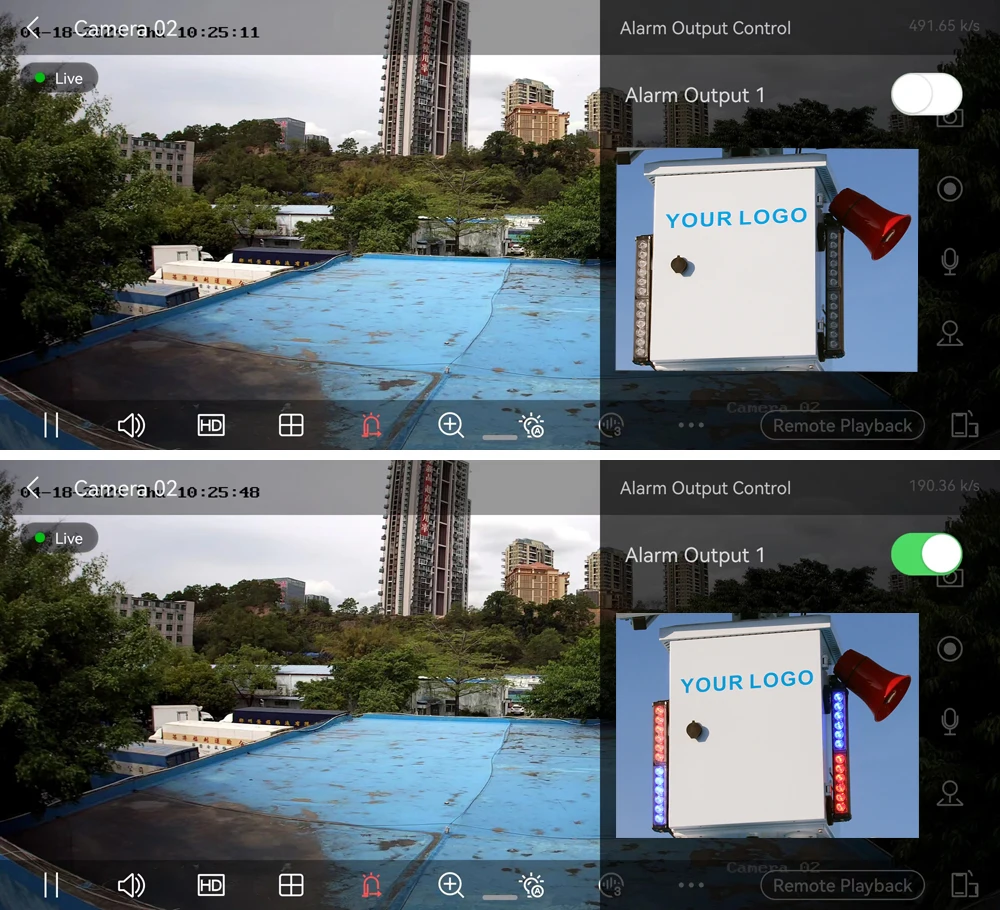

Alarm Notifications / Alarm Output Control on Hik-Connect APP

Touch Playback or the Event message it will Playback the Event

Alarm Output is Auto Controlled by the system, It can be turned on manually if need.

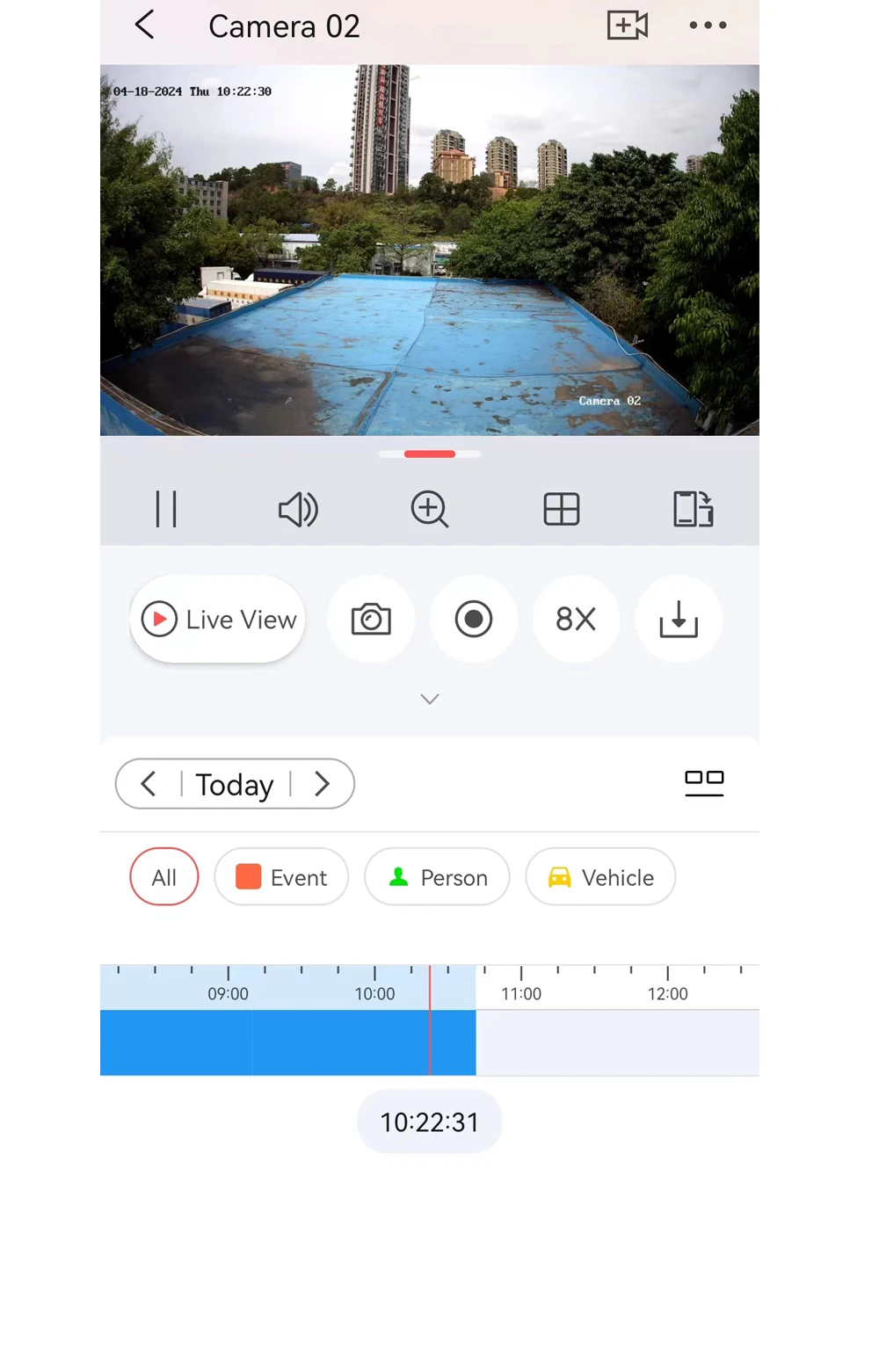

Playback on Hik-Connect app

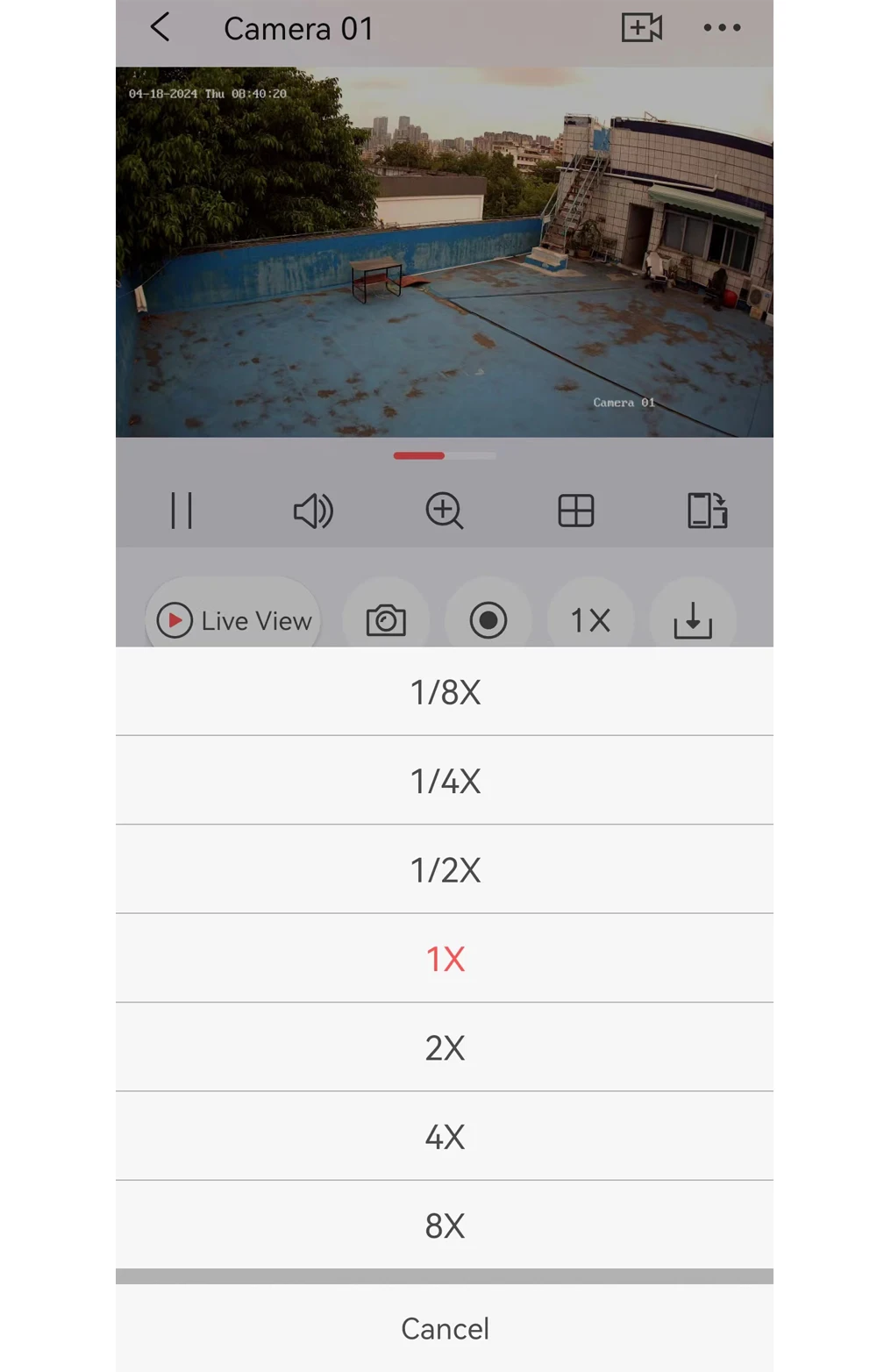

Different playback Speed is optional

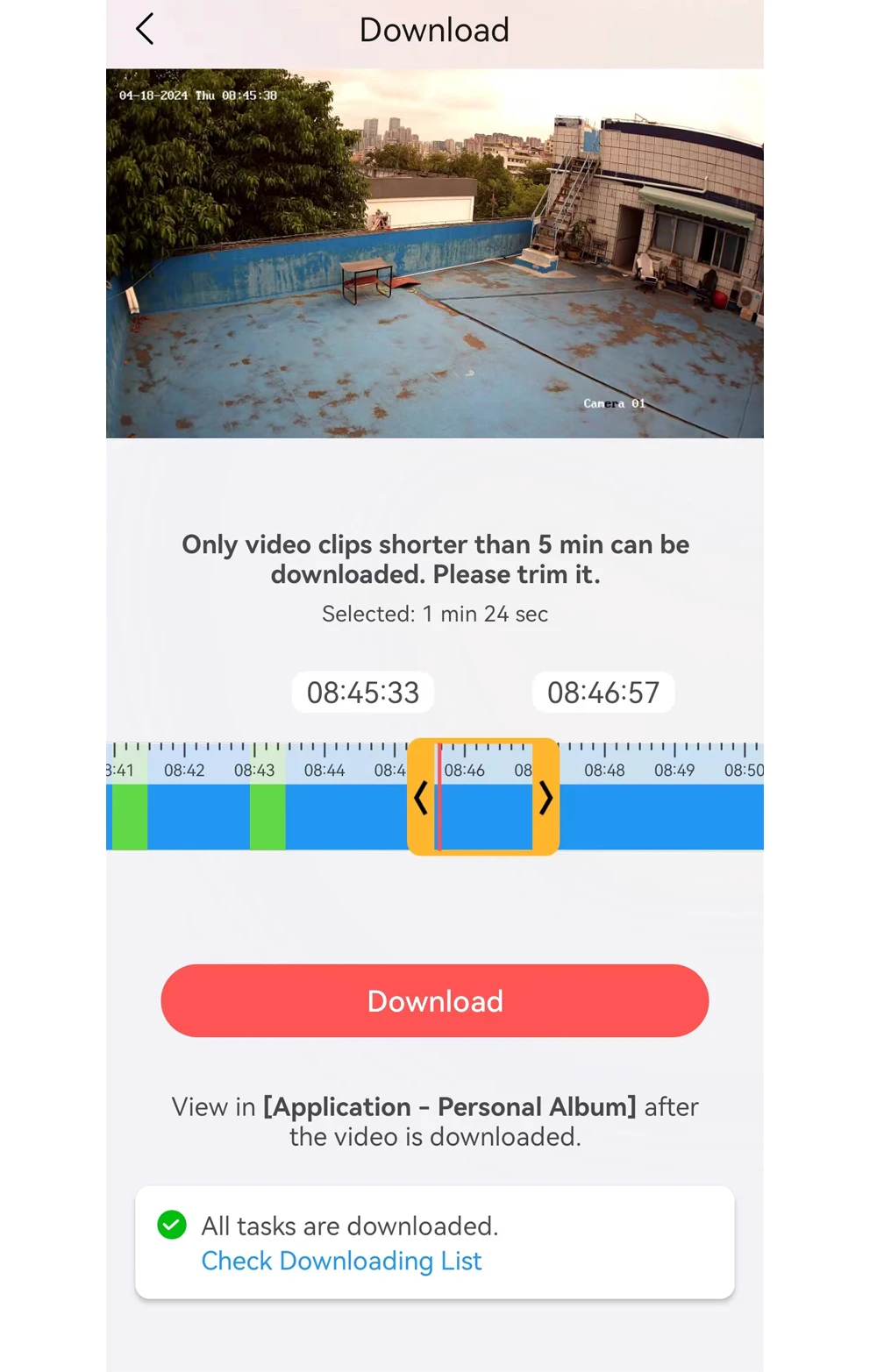

Download Recorded File on Hik-Connect app

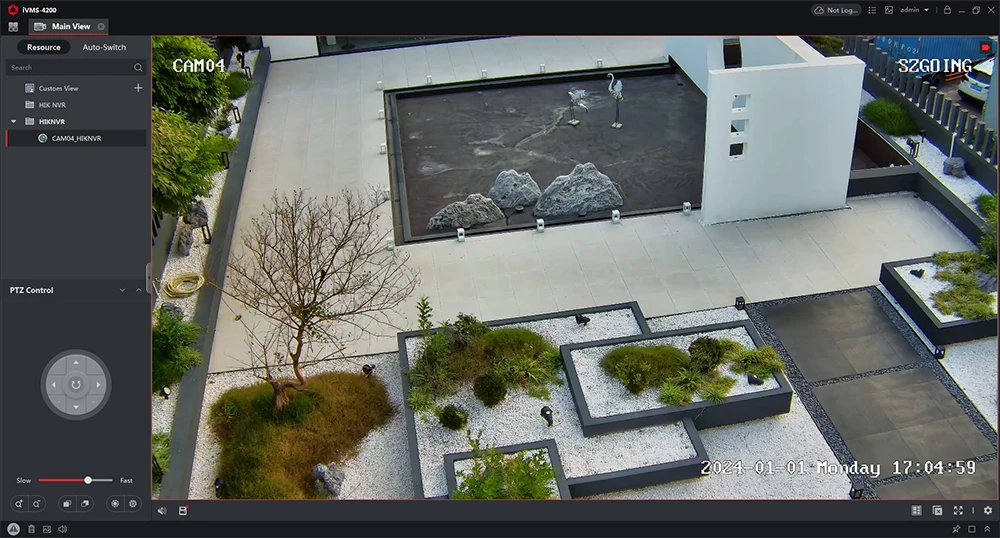

VMS (Client Software for PC)

Specification

Solution name	BS200-A2P30X-1T-FL-HIK
Compression	H.265+
Video Resolution	8MP
Supported Protocols	TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPsec, UPNP,RTP,RTCP
System Interface	10M/100M self-adapting Ethernet port
4G/3G/2GBand support	12DBI 4G/3G/2G antenna Europe/Asia/Africal: 4G LTE-FDD:B1(2100)/B3(1800)/B7(2600)/B8(900)/B20(800),4G LTE-TDD:B38/B40/B41, 3G WCDPA :B1(2100)/B8(900),2G GSM:900/1800 America :4G,LTE-FDD:B1(2100),B2(1900),B4(1700),B12(700),B13(700),B17(700),3G WCDPA:B1(2100),B2(1900) Australia: FDD:B1(2100)/B3(1800)/B5(850)/B7(2600)/B8(900)/B20(800) ,Optional 700MHZ TDD:B38/B39/B40/B41 GSM(900M/1800M),EVDO(800M),TD_SDCMA(B34/B39)WCDPA:B1/B5/B8
WiFi network	802.11N/G/B,2.4G
Remote access way	P2P, Only need camera series ID and password,No need set DDNS
Memory	1024GB Hard disk
Record mode	manual>alarm>motion detection>timing,By local HDD or NVR/PC
Camera system	2pcs Sony Sensor 8mp PTZ camera
Pan/Tilt	0-360 degree endless/0-90 degree
Camera lens	30X optical zoom,3.2-96mm lens
IR Range	100M IR night vision
Hardware Alarm input	By Motion Detection
Hardware Alarm output	Red & Blue Alarm Light
Solar system	100W X 2pcs Maximum Power(Pmax):100W Voltage at Pmax(Vmp):18V Current at Pmax(Imp):5.56A Open-Circuit Voltage(Voc):21.6V Short-Circuit Current(Isc):6.11A Size:1025mm x 541mm x 30mm Weight:5.6kg Cells: 36pcs of 156x78mm mono-crystalline silicon
Server box size	400x250x500mm
Power Control System	20A
Solar bracket	Aluminium alloy
Battery	Support Lead Acid battery,18650 Li battery,Lifepo4 battery,and others,Suggest 50~100ah 12.8V LifePO4 Battery
OS for CMS	Microsoft Windows XP/2003/Vista/win7/win8/win10
Kit Weight	62KG

Packing & Delivery

Packing List:

1.PTZ Camera x2pcs
2.100W Aluminium alloy solar bracket x2kit
3.100W solar panel x2pcs
4.Install tool x1kit
5.Serve box x1pcs(Installed 4G WIFI Network System,1024GB NVR Hik vision Recorder System,Power Control System)

7.Red Blue Alarm Light x1set

9.WiFi Antennas x1pcs,4G Antennas x1pcs

10.Sim card x1pcs(Need month play,or use your sim card)

11.Pole adapter x1kit
(for Diameter=60mm/2.36inch pole,please make notice if need other size,max support pole Diameter=170mm/6.69inch)

Not included:
1.Pole
2.Battery

Suggest 50~100ah 12.8V LifePO4 Battery

Seller's Shipping Method (DDP Shipping,Tariff Included.)
This is the DDP shipping way Sea/Train+Express door to door We Set,Need 2~3 weeks.

Data Sim Card

We will put a data sim card to sim card slot for most countries,The system got internet ready.It has 100M free data for you to test the system,Lower Cost Data Plan.You can use your own sim card if you don't like its data plan.

it will auto-select the local best signal operators
*USA:AT&T, T-Mobile
*Europe:KPN, Hutchison 3G UK, 02，E-Plu
*Australia:OPTUS
